Rechargeable Bulb Design Insight: Define the Use Role Before the Feature List
- Socket-mounted products: Should prioritize installation compatibility, normal lighting behavior, fixture space, and convenient household use.
- Portable products: Need practical hanging, carrying, controls, battery runtime, and useful area illumination.
- Hybrid products: Should perform properly in both mounted and portable conditions rather than simply include both features on paper.
- More functions are not automatically better: The configuration should support the intended market and price position.
A rechargeable bulb may look like a simple lighting product, but its real use can vary significantly from one model to another.
Some products are designed primarily to remain installed in a household socket and provide normal or emergency lighting from a familiar fixture.
Others are designed more like portable area lights. They may include hooks, carrying structures, independent switches, multiple brightness modes, or other features that allow the product to be removed from the socket and used in temporary locations.
A third group combines both ideas.
These hybrid rechargeable bulbs can operate as socket-mounted lighting while also supporting hanging or portable use when required.
For importers, this changes the purchasing question.
Instead of asking only:
“Is it E27 or B22?”
or:
“How many watts and how many mAh?”
the buyer should first define:
“Is this product mainly a socket-mounted bulb, a portable rechargeable light, or a hybrid product expected to work well in both situations?”
That positioning affects:
Socket configuration
Product dimensions
Battery capacity
Hook structure
Switch location
Lighting modes
Runtime
Weight
Charging behavior
Packaging
Accessories
Instructions
Retail positioning
A rechargeable bulb with a hook is not automatically a successful portable light.
Likewise, a product that works well when hanging is not automatically convenient when installed inside a household fixture.
The complete rechargeable bulb design should match the intended way customers will actually use it.
Why Rechargeable Bulbs Are No Longer Just “Bulbs”
A conventional bulb is primarily understood as a fixed light source.
It is installed into a compatible fixture, receives power through the socket, and illuminates a defined indoor area.
Rechargeable bulbs can extend that role.
Depending on the model, the product may also be used for:
Power-outage lighting
Hanging illumination
Temporary work areas
Small shops or stalls
Garages
Balconies
Camping
Emergency backup
Portable indoor lighting
This means the physical form of the bulb is becoming part of the commercial specification.
The Same General Product Name Can Hide Different Use Cases
Two products may both be sold as “rechargeable LED bulbs” while serving very different users.
One model may be designed mainly for household backup lighting.
Its priorities may be:
Familiar socket use
Simple operation
Suitable dimensions for existing fixtures
Stable light output
Automatic emergency function, depending on the design
Another model may be positioned as a portable light.
Its priorities may include:
Hook
Independent control
Long battery runtime
Multiple brightness levels
Easy carrying
Wide area illumination
A hybrid design may need to satisfy both groups.
That difference should influence the entire OEM specification.
Start With the Intended User Scenario
Before comparing wattage or battery capacity, importers should define:
Where will the product normally stay?
Will users frequently remove it from the socket?
Will it be carried between rooms?
Will it be hung above a table or temporary workspace?
Is power-outage use the main selling point?
Is portable use an occasional backup function or a primary feature?
These questions help determine which features deserve cost and engineering attention.
Portable Use Changes What “Good Lighting” Means
A bulb installed in a ceiling fixture may illuminate from one orientation.
The same bulb hanging from a hook can operate in another orientation.
The buyer should therefore consider whether the optical distribution remains useful in both positions.
A product designed only around socket installation may not automatically produce the best light pattern when suspended lower in a room.
This is one reason rechargeable bulb form factor should be evaluated as part of the total lighting system, not only as a battery added to a conventional bulb.
Socket-Mounted Designs Prioritize Familiar Indoor Use
Socket-mounted rechargeable bulbs remain closely connected to the way customers already use ordinary household lamps.
Their value comes partly from familiarity.
Users can install the bulb into an existing compatible fixture rather than introduce a completely separate portable-lighting product.
DP’s article on rechargeable bulb socket compatibility already covers socket compatibility and charging-related considerations in more detail.
The broader product-design question is:
How does socket use influence the overall product structure and positioning?
Socket Type Should Match the Target Market
An OEM project may require an appropriate socket configuration such as E27, B22, or another design depending on the intended market and model.
The buyer should confirm the required version before packaging and mass production.
But socket selection is only the beginning.
Product Size Matters Inside Real Fixtures
Rechargeable bulbs often contain additional components that ordinary bulbs may not need, such as:
Battery
Charging circuit
Control PCB
Switches
Indicators
Additional housing
These parts can increase:
Diameter
Height
Weight
Therefore, the buyer should check whether the complete product fits the intended lamp fixtures.
Questions include:
Is the bulb body too wide for a lampshade?
Does the longer housing interfere with the fixture?
Does the added battery weight place unusual mechanical load on the socket?
Can the user still access any required switch?
A product can have the correct socket type and still be inconvenient in the final fixture.
Switch Position Should Match Mounted Use
If a rechargeable bulb includes a physical switch, its location matters.
When the bulb is installed:
Can the switch still be reached?
Is it blocked by the lampshade?
Does the normal wall-switch behavior remain understandable?
Does the product require a separate operating sequence?
The control design should be evaluated in the actual mounted orientation.
Light Distribution Should Match Fixture Position
A bulb may be installed:
Vertically downward
Vertically upward
Horizontally
Inside a shade
Inside an open fixture
The product’s optical design should suit the intended installation.
For socket-oriented products, the main objective is usually to preserve convenient familiar use while adding rechargeable or emergency functionality.
| Socket-Mounted Design Check | Why It Matters |
|---|---|
| Socket configuration | Must match the intended model and destination market |
| Overall dimensions | Rechargeable components can make the bulb larger than a conventional design |
| Switch accessibility | Controls should remain practical after installation |
| Light distribution | The beam should work in the intended fixture orientation |
| Product weight | Battery and housing design affect the mechanical load of the complete product |

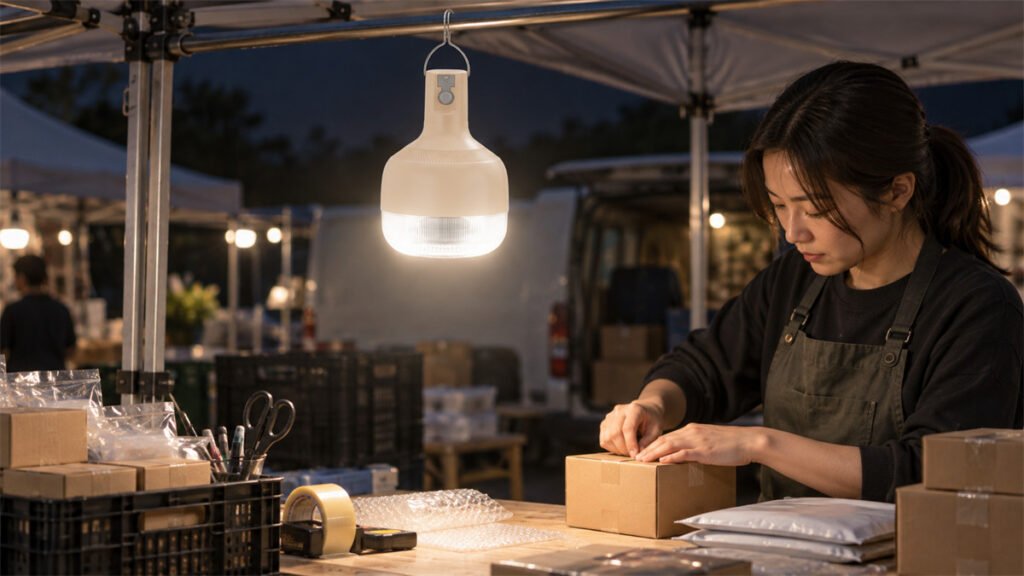

Hook-Mounted Designs Turn the Bulb into Portable Area Lighting
Adding a hook changes the role of the rechargeable bulb.
The product is no longer used only through a fixed socket.
It can become a portable area light.
Depending on the exact model and intended environment, users may hang it in places such as:
Tent
Stall
Garage
Balcony
Temporary workspace
Indoor emergency area
Storage room
Outdoor dining area where the product is designed for that environment
This creates a different set of mechanical and optical requirements.

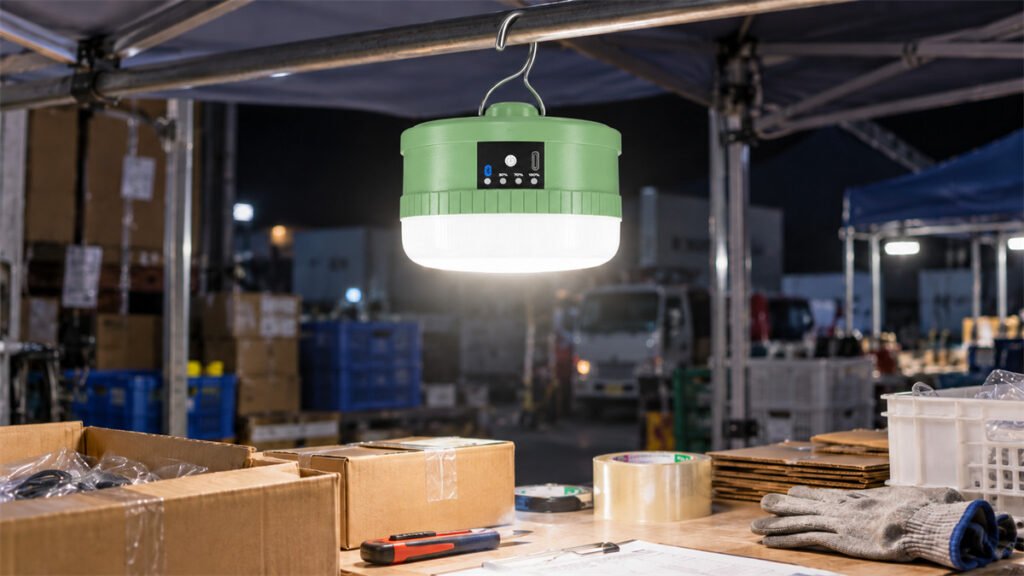

Hook Position Affects Balance
The hook should not be treated as a decorative accessory.
Its position affects how the product hangs.
If the hook is far away from the product’s practical center of gravity, the bulb may tilt.
That can change:
Light direction
Stability
Switch accessibility
User perception
Importers should hang the physical sample and observe its real orientation.
Hook Material and Connection Matter
Depending on the product, the hook may use:
Metal wire
Plastic
Integrated housing structure
Foldable mechanism
Removable component
The appropriate solution depends on:
Product weight
Frequency of use
Target price
Storage needs
Packaging
The buyer should check the connection point rather than evaluating the hook alone.
Define the Hook and Hanging Test Conditions
If hanging use is an important selling point, the hook should be evaluated with the complete production-intent bulb rather than as an isolated accessory.
The review may define:
Final product weight
Hanging orientation
Intended support diameter
Repeated hanging and removal
Hook deformation
Connection looseness
Cracking or stress whitening
Rotation of the bulb while suspended
Whether the hook remains securely stored when not in use
Buyers should also check whether normal button operation causes excessive swinging or rotation.
The objective is not to apply one universal load requirement to every rechargeable bulb. It is to make the required hanging performance clear and repeatable before mass production.

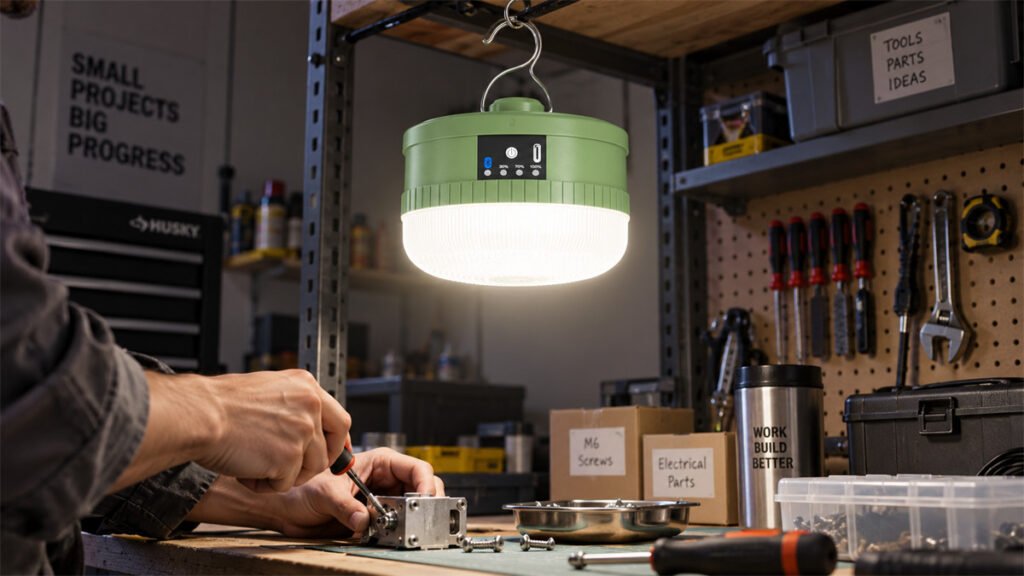

Hanging Orientation Changes the Optical Requirement
A portable bulb may hang lower than a ceiling-mounted lamp.
This can change what users expect from the light.
The product may need to illuminate:
A table
The surrounding room
A work surface
A stall
A small emergency area
A strongly directional light may behave very differently from a wide-area design.
The final sample should therefore be tested in the intended hanging position.
Controls Need to Remain Reachable
When the bulb hangs from a hook, the user should be able to operate the required controls conveniently.
Importers can check:
Switch position
Button size
Mode sequence
Indicator visibility
Whether the product rotates while the button is pressed
A control that works perfectly while holding the bulb may be awkward while the product is hanging.
Portable Use Makes Carrying Relevant
Once a bulb becomes portable, buyers should also consider:
Product weight
Grip area
Hook storage
Whether the hook catches on other objects
Protection of the socket base
Storage inside bags or emergency kits
This is a very different product-design problem from a bulb intended to remain in one ceiling fixture.
Match the Feature Set to the Product Role
The final feature set should follow the product’s main use role rather than simply include as many functions as possible.
- Socket-focused products: Prioritize fixture compatibility, simple controls, household lighting, compact dimensions, and emergency backup. Portable features should not make the housing unnecessarily bulky.
- Portable-focused products: Prioritize hanging structure, runtime, independent controls, carrying, and useful area lighting. These products should be evaluated as portable lights rather than only as conventional bulbs.
- Hybrid products: Balance socket compatibility with portable functionality. Both mounted and portable use should be tested before the sample is approved.
The key is to make each added feature support the intended application instead of increasing complexity without clear user value.

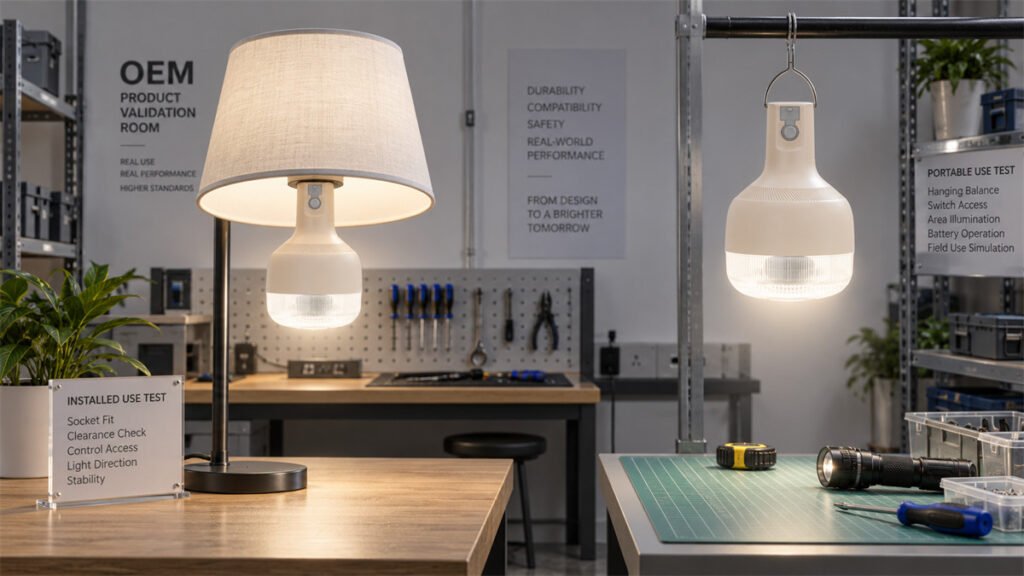

Hybrid Socket-and-Hook Designs Need Both Use Cases to Work Properly
Hybrid rechargeable bulbs are especially interesting for importers because one SKU can support more than one use scenario.
Some DP rechargeable bulb models, such as DP-7817, combine socket installation with a hanging structure for portable use.
The commercial idea is straightforward:
Use the product like a rechargeable bulb when installed, then remove and hang or carry it when portable lighting is needed.
But a hybrid design only creates real value if both situations work properly.
Simply adding a socket and a hook to the same housing is not enough.
Test the Product in Socket-Mounted Use
When installed in its intended fixture, the buyer should confirm:
Overall size
Socket fit
Housing clearance
Switch accessibility
Light direction
Operating logic
Charging or power behavior according to the actual model
The hook should also avoid interfering unnecessarily with normal installation.
Then Remove It and Test Portable Use
After removal, the buyer should evaluate:
Hanging balance
Hook stability
Light coverage
Mode access
Battery runtime
Carrying comfort
Product weight
Socket-base protection during portable handling
A product can pass the first test and fail the second.
Define the Electrical Behavior in Each Use State
A hybrid rechargeable bulb should also have clearly defined electrical behavior in each intended use state.
Buyers should confirm what the specific model does when it is:
Installed in the socket with mains power available
Installed in the socket when mains power is interrupted
Removed from the socket for portable use
Switched on or off through any independent control
Charging, where applicable to the product design
Importers should not assume that every rechargeable bulb uses the same emergency-lighting or portable-use logic.
The approved sample, specification sheet, and user instructions should describe the actual operating sequence for the selected model.
Where the socket base is exposed during portable use, the buyer should also confirm the intended handling condition and electrical state of the contacts according to the final product design.
Hybrid Products Need Two-Sided Optical Thinking
Socket-mounted use and portable hanging may place the light source at very different heights and orientations.
When mounted in a fixture, the product may illuminate from above.
When hanging from a hook at a stall or temporary work area, the product may be much closer to the user.
Importers should therefore check whether:
The light becomes uncomfortable at close range
The illuminated area remains wide enough
Glare changes
The diffuser remains effective
The bulb body creates unwanted shadows
The Hook Should Not Reduce Normal Fixture Compatibility
A large hook or external structure may make portable use easier while increasing overall dimensions.
This may interfere with:
Lampshades
Narrow fixtures
Packaging
Storage
The correct design therefore depends on the product’s main positioning.
A portable-first hybrid product may justify a more prominent hook.
A socket-first household product may benefit from a more compact or foldable structure.
The Socket Base Must Survive Portable Handling
When users remove the bulb and carry it as a portable light, the socket base becomes an exposed part of the product.
The buyer should consider how the product is:
Held
Placed on surfaces
Packed
Transported
Stored
The approved use instructions should also clearly distinguish how the product is intended to operate in each state.
The core principle is:
A hybrid rechargeable bulb should perform as both a socket-mounted lamp and a portable light, not merely include both features on the specification sheet.
Battery, Lighting Modes, and Accessories Should Match the Product Positioning
Once the product role has been defined, the electrical specification becomes easier to select.
A socket-focused household bulb and a portable-first rechargeable bulb do not necessarily need the same battery or control strategy.
Socket-Focused Products May Prioritize Simplicity
For products mainly used in household fixtures, priorities may include:
Familiar lighting
Simple operation
Convenient emergency function
Suitable brightness
Reasonable battery backup
Compact dimensions
Too many controls or special modes may add complexity without creating enough value.
Portable-Oriented Products May Need More Runtime Flexibility
A portable rechargeable bulb may be used for several hours away from a fixed installation.
The buyer may therefore place more emphasis on:
Battery capacity
High / medium / low modes
Runtime
Battery indicator
SOS or flashing function, if appropriate to the application
Independent switch
Hook
Portable charging features
Some models may also offer additional functions such as USB output, but these should be evaluated according to the actual product positioning rather than added automatically.
DP’s article on battery capacity versus actual runtime explains why mAh alone does not define usable lighting time.
Brightness and Runtime Should Be Balanced
A portable product may not need to operate at maximum brightness during every situation.
A lower mode can provide:
Longer operating time
Reduced battery demand
More comfortable close-range illumination
DP’s article on brightness and runtime balance explains why LED output and battery duration need to be specified together.
Mode Logic Should Match the Use Case
A hybrid bulb may include:
High
Medium
Low
Flash
SOS
Other model-specific functions
But the mode sequence should remain understandable.
DP’s article on rechargeable LED lighting modes explains why adding more functions does not automatically improve the product.
For a bulb used during a power outage, customers may value quick access to a practical normal-lighting mode more than a long sequence of special functions.
Accessories Should Support the Main Selling Point
Depending on the model, useful accessories may include:
Hook
Charging cable
Portable adapter or interface
Packaging insert
Additional socket accessory
Other project-specific components
The correct accessory bundle depends on whether the SKU is positioned as:
Household emergency bulb
Portable rechargeable bulb
Camping-oriented light
Stall light
Hybrid emergency / portable product
| Product Positioning | Likely Priority | What Buyers Should Avoid |
|---|---|---|
| Socket-Focused | Fixture compatibility, simple controls, household lighting, emergency backup | Adding portable features that make the housing unnecessarily bulky |
| Portable-Focused | Hook, runtime, independent controls, carrying and area lighting | Treating it only like a conventional bulb |
| Hybrid | Balanced socket use and portable functionality | Testing only one of the two intended operating situations |
What Importers Should Lock Before OEM Sample Approval
Rechargeable bulb form factor should be confirmed during the physical sample stage.
Importers should lock:
Main product positioning
Socket-mounted, portable, or hybrid use
Socket type, if required
Product dimensions
Product weight
Hook structure
Hook material
Hook connection
Hanging orientation
Standing or placement behavior, if applicable
Switch position
Control logic
LED configuration
Brightness
Lighting modes
Battery type
Battery capacity
Runtime by key mode
Charging design
Emergency-lighting behavior according to the model
USB output, if required
Indicators
Optical diffuser
Light distribution
Portable accessories
Packaging dimensions
Packaging accessories
User-manual applications
Product claims
Approved physical sample
Approve Both Use States for Hybrid Products
For a socket-and-hook product, sample approval should include both conditions.
Socket-mounted test:
Install the product in the intended fixture.
Check dimensions and clearance.
Operate the controls.
Evaluate the lighting pattern.
Confirm the model-specific electrical behavior.
Portable test:
Remove the product.
Carry it.
Hang it from the intended structure.
Operate each important lighting mode.
Check balance and light coverage.
Evaluate battery runtime under the intended portable mode.
Only after both conditions are acceptable should the product be treated as a true hybrid design.
Connect Socket Design to Existing Compatibility Requirements
DP’s article on rechargeable bulb socket compatibility provides the deeper technical background for socket and charging compatibility.
Socket compatibility is only the first step in product definition.
After the buyer knows which socket system is required, what role should the complete product play?
Match the SKU to the Product Portfolio
Different bulb structures can also serve different price and use tiers.
An importer may build a range containing:
Basic household emergency bulb
Higher-capacity backup bulb
Hook-equipped portable model
Hybrid socket-and-portable model
Multifunction model for specific channels
DP’s article on rechargeable product portfolio strategy explains how importers can build differentiated product tiers without treating entry-level products as lower quality.
DP’s article on rechargeable bulb SKU strategy also provides additional context for building differentiated bulb offers rather than relying on one specification for every buyer.
Transfer the Approved Structure Into Mass Production
If the final product is approved with a specific:
Socket
Hook
Housing
Battery
Switch
Diffuser
Mode sequence
Accessory set
those characteristics should be recorded before bulk production.
DP’s sample-to-mass-production process explains how approved product specifications can be transferred into manufacturing requirements.
For repeat orders, an approved physical sample can help maintain:
Dimensions
Hook position
Housing
Weight
Light appearance
Switch logic
Accessories
DP’s article on golden sample quality control explains how reference samples help reduce specification drift between approved samples and mass production.
For customized projects, buyers can review DP’s OEM and ODM rechargeable lighting development for socket, battery, PCB, lighting modes, hook structure, housing, packaging, sample, and production configuration support.
Conclusion
Rechargeable bulbs are no longer defined only by socket type, wattage, or battery capacity.
Their physical form can determine whether the product functions primarily as a familiar household bulb, a portable area light, or a hybrid product that moves between both roles.
For importers, the right rechargeable bulb design should therefore match:
installation method, portable use, product dimensions, hook structure, battery runtime, lighting modes, controls, accessories, and target market.
The objective is not to add a hook, more modes, or a larger battery simply to increase the specification list.
The objective is to make each feature support the way customers will actually use the product.
Planning an OEM rechargeable bulb project? Send DP your target market, socket requirement, portable-use needs, hook structure, battery configuration, runtime, lighting modes, product dimensions, accessories, packaging requirements, order quantity, and destination market. Our team can evaluate the complete socket, portable-use, electrical, and mechanical configuration during sample development.
Partner with DP Light Today
Looking for competitive lighting & electrical products? Get direct access to our latest catalog and exclusive factory pricing.
*Fast response within 24 hours.
FAQ: Rechargeable Bulb Design
A: No. A hook adds value when portable or hanging use matters. For a product intended mainly to remain inside a household fixture, a simpler structure may be more appropriate.
A: The required socket should match the intended model and destination market, but the buyer should also define whether the product is mainly socket-mounted, portable, or hybrid because that decision affects the rest of the product design.
A: Yes, if the complete product is designed and tested for both conditions. Buyers should evaluate fixture compatibility, controls, light distribution, hanging balance, runtime, and portable handling separately.
A: No. A larger battery can support longer runtime, but it may also increase size, weight, charging time, and cost. The battery configuration should match the intended operating time and product positioning.
A: No. These are model-specific functions. The correct feature set depends on the intended application, price tier, battery capacity, control simplicity, and target customer.
Why Choose Us?
Export Market Distribution
