Runtime Insight: mAh Is Important, but It Is Not a Complete Runtime Claim
- Voltage changes stored energy: Two batteries with the same mAh rating can store different total energy when their voltages are different.
- Power consumption changes operating time: Motors, LEDs, control boards, displays, misting systems, and other functions all consume energy.
- Test conditions change the result: High mode, low mode, combined functions, temperature, and shutdown criteria must be defined before runtimes are compared.
Introduction
Two rechargeable products can both carry a 4,000mAh battery rating and still deliver very different operating times.
A fan running at high speed may consume energy much faster than another model tested at low speed. An emergency light may maintain stable useful brightness for most of its runtime, while another gradually becomes dimmer. Searchlights, headlamps, and camping lanterns may also use the same stated battery capacity while operating at very different power levels.
This does not automatically mean that one supplier has provided incorrect battery information. The mAh rating describes battery charge capacity, but actual runtime also depends on battery voltage, motor or LED power, circuit efficiency, operating mode, additional functions, low-voltage cutoff, and the test method used.
Importers should therefore ask:
“How much usable battery energy is available, how much power does the product consume, and under which conditions was the runtime tested?”
DP develops rechargeable fans, emergency lights, flashlights, searchlights, headlamps, camping lanterns, solar lighting systems, and other portable rechargeable products. This article explains how buyers can compare battery capacity and runtime more fairly before sample approval and mass production.
Why the Same mAh Rating Does Not Guarantee the Same Runtime
Battery capacity in milliamp-hours is a useful specification, but it should not be treated as a complete measurement of product runtime.
The mAh value describes how much electrical charge a battery is rated to store under defined conditions. It does not directly describe how quickly a complete product consumes that stored energy.
Actual runtime depends on the complete product system.
Important factors include:
- Battery voltage, condition, and usable capacity
- Motor or LED operating power
- Motor, driver, PCB, and conversion efficiency
- Fan speed or brightness mode
- Oscillation, lighting, misting, displays, and power-bank output
- Low-voltage cutoff and battery-protection settings
- Ambient temperature and battery condition
- The test method and defined runtime endpoint

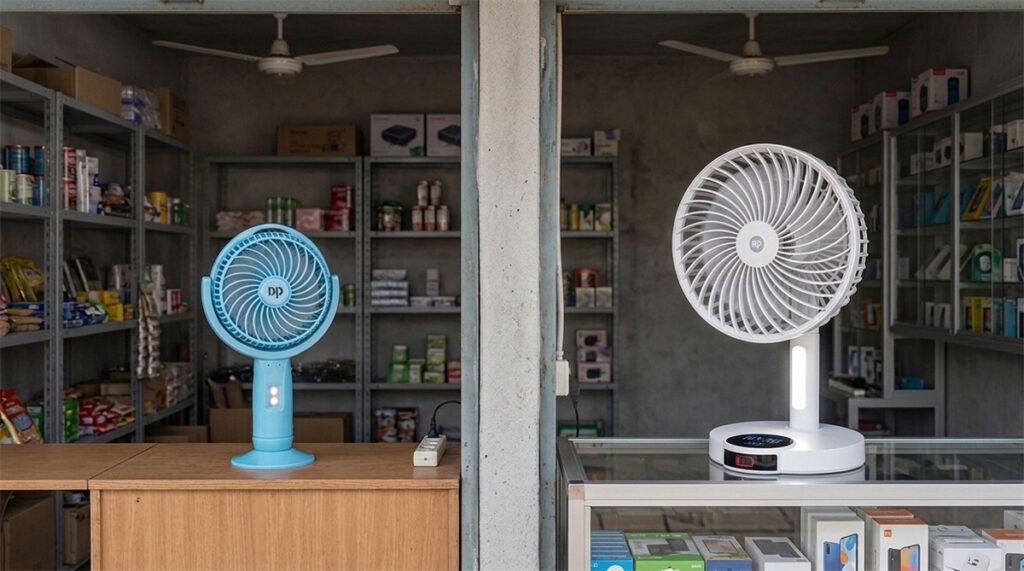

For example, two fans may both use a battery marked 4,000mAh. The first fan may use a smaller motor, lower fan speed, and fewer additional functions. The second may use a larger motor, stronger airflow, oscillation, an LED light, and a digital display.
The second product may run for less time because it is doing more work. That does not necessarily make it the weaker product.
The same principle applies to lighting.
Two rechargeable lights may use the same nominal battery capacity, but one may operate a lower-power LED while the other produces higher brightness. One may maintain a controlled output level, while another gradually reduces power as battery voltage falls. Their operating times and user experiences will therefore differ.
The battery protection and cutoff design also affect usable runtime.
A product may shut down earlier to avoid excessive battery discharge. Another product may continue operating at reduced output for longer. The second may advertise a longer operating time, but the final portion of that time may deliver much lower airflow or brightness.
Buyers should therefore distinguish between:
- Runtime until automatic shutdown
- Runtime at useful airflow or brightness
- Runtime in high, medium, and low modes
- Runtime with one function or several functions operating together
The mAh number remains important, but it must be interpreted within the product system.

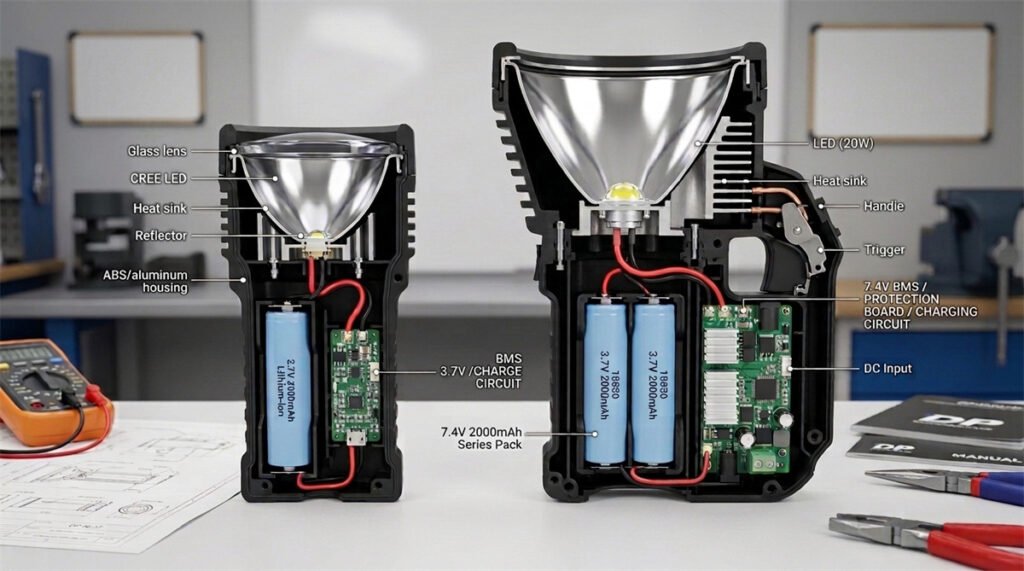

Battery Voltage and Energy Matter When Comparing Products
When comparing batteries that operate at different voltages, mAh alone can produce a misleading conclusion.
A simple energy reference is:
Battery energy (Wh) = Voltage (V) × Capacity (Ah)
Because 1,000mAh equals 1Ah, a 2,000mAh battery is expressed as 2Ah in this calculation.
For example:
- 2,000mAh at 3.7V provides approximately 7.4Wh of nominal energy.
- 2,000mAh at 7.4V provides approximately 14.8Wh of nominal energy.
Both batteries are marked 2,000mAh, but the second battery pack has approximately twice the nominal stored energy because it operates at twice the voltage.
This is why watt-hours can provide a more useful starting point when comparing products with different battery-voltage platforms.
The simplified relationship is:
Estimated runtime ≈ usable battery energy ÷ average product power
This calculation provides an estimated reference rather than a guaranteed runtime. Actual performance may differ because nominal battery energy is not always fully usable. Circuit losses, battery condition, temperature, operating mode, voltage changes, and low-voltage cutoff all affect the final result.
The formula is most useful when buyers compare products under the same operating mode and clearly defined test conditions.
Battery-cell configuration also matters.
Cells connected in parallel can increase total amp-hour capacity while maintaining a similar nominal voltage. Cells connected in series increase pack voltage while the amp-hour rating remains similar to that of one cell group. Importers do not need to calculate every internal connection themselves, but they should confirm the final battery-pack voltage, capacity, energy, and cell arrangement.
Buyers who need more background can review DP’s article on 18650 lithium battery basics.
Battery architecture is another separate decision. A built-in and a replaceable battery can have similar energy ratings but create different servicing, packaging, housing, and user experiences. DP’s article on replaceable and built-in battery configurations explains how importers select between these structures.
When comparing battery specifications, buyers should confirm:
- Nominal battery voltage
- Nominal battery capacity
- Approximate nominal energy in watt-hours
- Cell quantity and pack configuration
- Battery chemistry and model
- Tested usable runtime by operating mode
The goal is not to replace mAh with Wh in every sales document. The goal is to avoid comparing two different energy systems only through one capacity number.
Motor, LED, PCB, and Charging Design Affect Usable Runtime
Battery energy determines what is available. The complete product design determines how quickly that energy is used.
Rechargeable Fans
For rechargeable fans, runtime may be affected by:
- Motor type, efficiency, and rotational speed
- Fan-blade diameter, shape, and load
- Target airflow and selected speed
- Oscillation or swing function
- LED lighting and digital display
- Misting or atomizing function
- Remote receiver, PCB, and voltage-conversion losses
A larger fan or higher rotational speed may produce stronger airflow but consume more power. A smaller fan may operate longer with the same battery while delivering less cooling.
Motor technology also matters, but it should not be reduced to a simple label.
A well-matched BLDC motor and control system can provide efficient operation and useful speed control. However, actual performance still depends on motor size, load, fan blade, circuit design, speed setting, and product construction.
Buyers can review DP’s article on BLDC and standard fan motors for more information about motor and internal-component considerations.
For broader product configuration decisions, buyers can also review DP’s OEM rechargeable fan specifications guide.
Rechargeable Lights
For rechargeable lighting products, runtime may be affected by:
- LED power and driver efficiency
- Number of LEDs and active lighting sections
- High, medium, and low brightness modes
- Beam design and optical efficiency
- Constant-output or declining-output control
- Sensor, indicator, and automatic switching functions
- Power-bank output and other simultaneous loads
A light with higher luminous output will generally consume more power unless improvements in LED efficacy, driver efficiency, optical design, or thermal management compensate for the increase.
LED package type alone does not determine runtime. COB and SMD configurations can both be designed for different output levels, beam patterns, thermal conditions, and product requirements. Importers should compare the complete LED, driver, brightness, optical, and thermal design rather than assuming that one package type always consumes less energy.
Buyers who need more background can review DP’s article on COB and SMD LED configurations for emergency-lighting products.
PCB, Protection, and Conversion Losses
The control board also consumes energy.
Voltage conversion, motor control, LED driving, displays, charging indicators, remote receivers, and protection circuits all create some electrical loss. These losses may be small individually, but they affect total usable runtime.
Low-voltage cutoff settings are especially important. The product should not continue discharging the battery beyond the intended protection point merely to produce a longer advertised runtime.
A more responsible design balances:
- Useful runtime and stable performance
- Battery protection and cycle life
- Heat management
- User experience
Charging design does not create extra battery energy, but it affects whether the battery reaches the intended full-charge condition and how practical the complete system is for users.
A product with an unsuitable charger, weak cable, or insufficient input may take too long to charge or fail to reach consistent results during testing. DP’s article on rechargeable product charging design explains how Type-C, Micro-USB, DC input, and other charging options should be matched to the battery and product.
A larger mAh rating cannot automatically compensate for an inefficient motor, LED driver, or control system. Runtime should be engineered at the complete-product level.

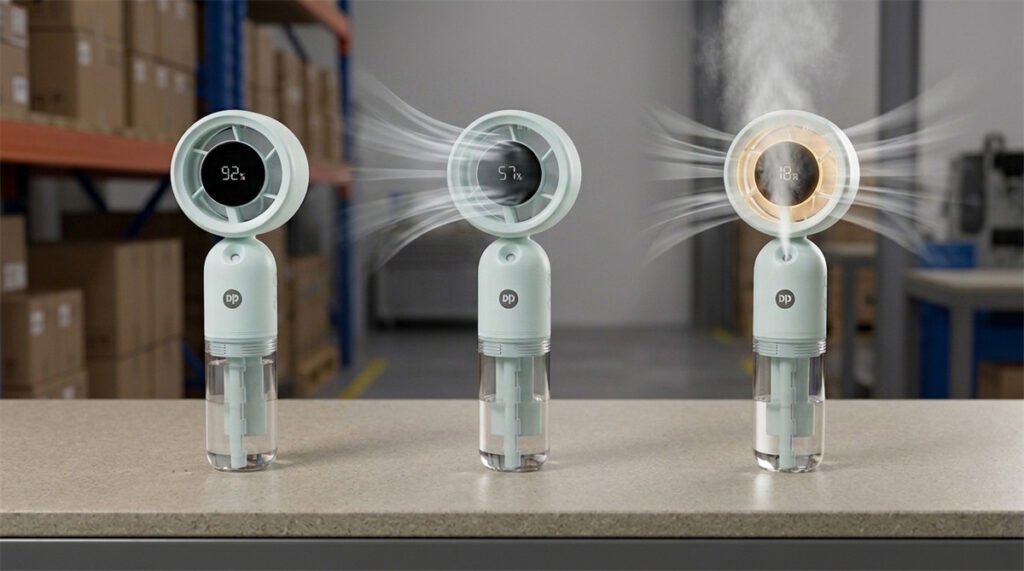

High, Medium, and Low Modes Produce Different Runtime Claims
Operating mode is one of the biggest reasons why runtime claims are misunderstood.
A rechargeable product may provide high, medium, and low settings. Each setting consumes a different amount of power and produces a different runtime.
A supplier may test runtime using:
- High, medium, or low fan speed
- High, medium, or low brightness
- One function or several functions together
- Continuous or intermittent operation
- Time until automatic shutdown
- Time until output falls below a useful level
All these methods can produce different results from the same battery.
For example, a rechargeable fan may include:
- Fan motor
- LED light
- Oscillation
- Misting system
- Digital display
- Power-bank output
Testing only the fan on low speed may produce a long operating time. Running the fan on high speed with the light, oscillation, and misting function active may produce a much shorter result.
Both figures may be technically possible, but they describe different use conditions.
The same issue applies to rechargeable lights.
A product may operate for 20 hours on low brightness but only 5 hours at maximum brightness. If the specification sheet states only “Runtime: 5–20 hours,” the figure is incomplete unless it explains the corresponding operating modes.
Runtime information should therefore identify:
- Function being tested
- Speed or brightness level
- Whether additional features are active
- Approximate output level
- Test start condition
- Test endpoint
- Battery and product configuration
For multi-function products, buyers may need several runtime figures rather than one broad range.
| Product Example | Test Condition | Why Runtime Changes |
|---|---|---|
| Rechargeable Fan | Low speed, light off, no oscillation | The motor runs at lower power and additional functions are inactive. |
| Rechargeable Fan | High speed, light and oscillation on | Higher motor load and simultaneous functions increase power consumption. |
| Emergency Light | Low brightness | Lower LED power supports a longer operating period. |
| Searchlight | Maximum beam output | High LED and driver power reduce runtime compared with lower modes. |
| Camping Lantern | Light on while charging another device | Lighting and power-bank output draw energy from the same battery. |
Different operating modes naturally produce different runtimes. Buyers should evaluate whether each mode delivers suitable performance for the intended customer rather than treating the longest runtime as the only measure of value.
A long low-mode runtime may be useful for emergency or overnight operation, while stronger airflow or maximum beam output may justify a shorter high-mode runtime. Runtime should always be evaluated together with the airflow, brightness, or other value delivered during that period.

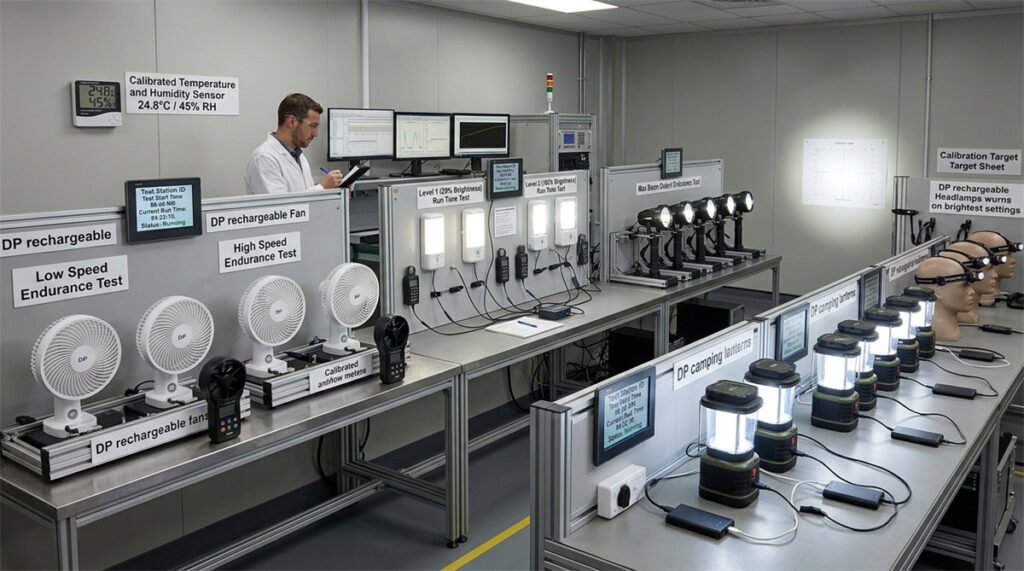

How Importers Should Define a Repeatable Runtime Test
Importers and factories should agree on the runtime test before sample approval. The method does not need to be unnecessarily complicated, but the main conditions must be clear enough for the buyer, factory, and inspection team to obtain comparable results.
1. Full-Charge Condition
The test record should identify:
- Charging adapter and cable
- Input voltage and current
- Full-charge indicator or charging duration
- Rest time after charging, if applicable
Using different adapters and cables may create different starting conditions.
2. Product Operating Mode
The selected operating mode must be clearly stated.
For fans, this may include speed level, oscillation, lighting, misting, and display functions.
For lights, it may include brightness level, main or side light, sensor mode, emergency mode, and power-bank output.
All selected functions should remain unchanged throughout the test.
3. Ambient Conditions
The approximate test temperature should be recorded. Battery and product performance may change when samples are tested under substantially different environmental conditions.
4. Test Endpoint
The endpoint may be defined as:
- Automatic shutdown
- Low-voltage protection activation
- Fan stopping or losing useful airflow
- Light turning off or falling below an agreed brightness
- Product no longer maintaining the selected mode
A fan may continue turning without providing meaningful cooling, while a light may continue glowing at a level that is no longer useful. Importers should therefore distinguish total operating time from useful runtime where necessary.
5. Sample Quantity and Result Format
One sample can provide an initial reference, but several samples provide a more reliable view of production consistency.
The buyer and factory should agree whether the final specification represents:
- One engineering-sample result
- An average from several samples
- A minimum acceptable runtime
- A typical runtime range
- A production-inspection requirement
Testing at least three representative samples can help identify abnormal variation before bulk production, although the appropriate sample quantity should be agreed for each project.
Once the method is confirmed, it should become part of the approved sample record and production specification. The purpose is not to force every product into one universal runtime standard. It is to make the selected test clear, repeatable, and relevant to the product’s actual use.
Runtime Approval Checklist Before Mass Production
Before mass production, the battery, product power, operating modes, charging design, and runtime claims should be treated as one connected specification.
Importers should confirm:
- Battery type, model, chemistry, and supplier
- Nominal capacity and voltage
- Approximate nominal energy in watt-hours
- Cell quantity and pack configuration
- Protection circuit and low-voltage cutoff
- Motor, LED, driver, and PCB configuration
- Product power by operating mode
- Charging input, cable, and adapter
- Expected full-charging time
- Runtime on each defined operating mode
- Additional functions active during testing
- Ambient temperature and runtime endpoint
- Tested sample quantity
- Typical, average, or minimum acceptable runtime
- Product label, manual, packaging, and sales claims
- Approved sample and mass-production specification
Runtime claims should always match the test condition.
Instead of stating only:
Runtime: 8–20 hours
a controlled specification should identify the corresponding low, medium, and high modes and state whether lighting, oscillation, misting, power-bank output, or other functions were active.
Runtime information should remain consistent across the quotation, specification sheet, approved sample record, product label, user manual, packaging, online listing, distributor materials, and inspection criteria.
DP’s article on private label packaging approval explains how buyers can prevent conflicting battery, charging, manual, label, and carton information before printing.
The approved battery and runtime configuration should also be protected during production. A battery-supplier change, motor change, LED change, PCB revision, cutoff adjustment, or charging-circuit change may affect runtime. Critical changes should therefore be reviewed and, where necessary, retested and approved by the buyer.
DP’s article on golden sample quality control explains how approved samples and specifications help prevent unapproved changes during bulk production.
DP supports buyers in matching battery capacity, voltage, product power, operating modes, charging input, target runtime, packaging claims, sample testing, and mass-production requirements.
Conclusion
The same mAh rating does not guarantee the same runtime. Battery voltage and capacity together determine nominal stored energy, while motors, LEDs, control boards, operating modes, additional functions, electrical losses, protection settings, and test conditions determine how that energy is used.
Importers should compare complete systems rather than one capacity number. A fair comparison identifies the battery voltage and energy, product power, selected mode, active functions, charging condition, test endpoint, and expected usable performance.
Planning a rechargeable fan, flashlight, searchlight, headlamp, lantern, or emergency light project? Send DP your target runtime, operating modes, battery preference, charging input, product functions, order quantity, and target price. Our team can help match the battery and power configuration before sample testing and mass production.
Partner with DP Light Today
Looking for competitive lighting & electrical products? Get direct access to our latest catalog and exclusive factory pricing.
*Fast response within 24 hours.
FAQ: Battery Capacity and Rechargeable Product Runtime
A: Not automatically.
A larger capacity can support longer operation when voltage, product power, efficiency, cutoff settings, and test conditions are comparable. Different products may consume energy at very different rates.
A: They may use different battery voltages, motors, fan sizes, speeds, control boards, oscillation systems, lights, displays, or other functions.
Their runtime tests may also use different operating modes.
A: Wh is often more useful when comparing batteries with different voltages because it reflects both voltage and amp-hour capacity.
However, actual product runtime still depends on usable energy, product power, efficiency, and cutoff behavior.
A: Automatic shutdown is one possible endpoint, but it may not always represent useful operating time.
For some products, buyers may also need to define when airflow or brightness falls below an acceptable level.
A: Yes. DP can evaluate the battery, motor or LED power, operating modes, charging input, functions, product size, target price, and test conditions.
The final configuration should be confirmed through sample testing before mass production.
Why Choose Us?
Export Market Distribution
