Power Management Insight: Maximum Brightness and Maximum Runtime Are Different Design Targets
- Constant-output designs: Prioritize a more stable brightness experience for a defined operating period.
- Progressive-output designs: Allow brightness to reduce as battery energy falls, which can support a longer remaining lighting period depending on the circuit design.
- Multi-mode designs: Let users select high, medium, or low output according to the brightness and runtime they need.
Introduction
A rechargeable LED light is always balancing two valuable outcomes: useful brightness and useful operating time.
Increasing LED power can make a flashlight, searchlight, camping lantern, emergency light, headlamp, or work light appear brighter. However, higher output also consumes battery energy more quickly. Reducing output can extend operating time, but the light may no longer deliver the same illumination level.
This is why two rechargeable lights with similar batteries can behave very differently during discharge.
One product may maintain almost the same brightness for most of its runtime and then shut down relatively quickly near the end. Another may start brightly and gradually reduce output as the battery voltage falls. A third may give users several brightness modes so they can actively trade maximum output for longer runtime.
None of these strategies is automatically better.
The correct power-management design depends on the product application, target runtime, LED configuration, battery voltage, driver circuit, low-voltage protection, thermal limits, and retail positioning.
For importers, the sourcing question should therefore not be:
“Does the light stay at maximum brightness until the battery is empty?”
A more useful question is:
“How does the product manage brightness throughout the discharge cycle, and does that behavior match the intended use?”
DP develops rechargeable lighting products with different battery capacities, LED power levels, brightness modes, charging systems, and runtime targets. This article explains how importers can evaluate rechargeable LED light brightness and runtime as one connected power-management system before OEM sample approval.
Why Rechargeable Lights Balance Brightness and Runtime Differently
Rechargeable lighting is a battery-powered system, so maximum brightness and maximum runtime cannot always be achieved at the same time.
The battery contains a limited amount of usable energy. The LEDs, driver circuit, indicators, control board, sensors, and additional functions consume that energy during operation.
The more electrical power the light uses, the faster the available battery energy is consumed.
This creates a design relationship between:
LED output
Electrical power
Battery capacity
Battery voltage
Driver efficiency
Brightness mode
Thermal management
Low-voltage cutoff
Runtime target

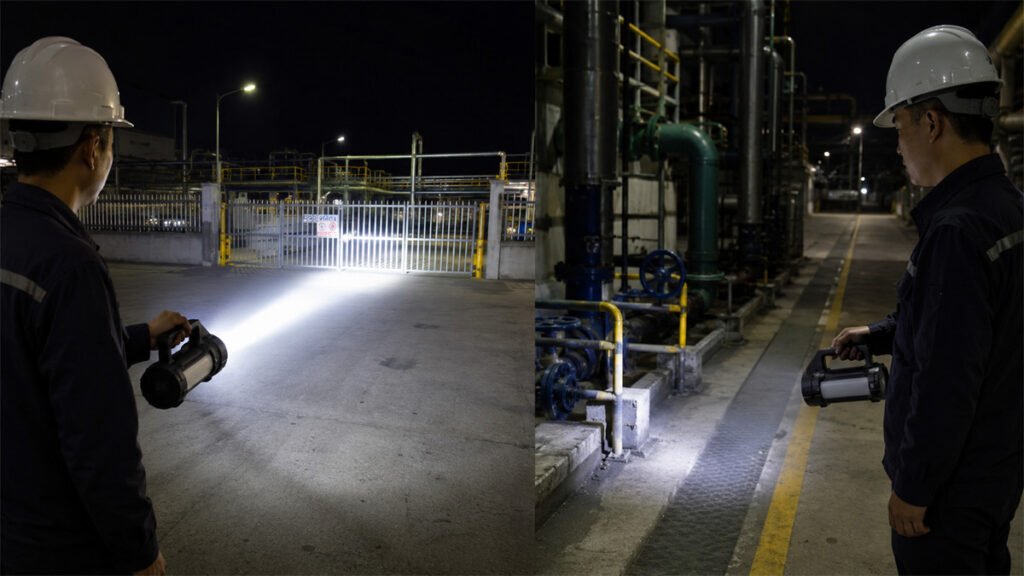

For example, a rechargeable searchlight may prioritize strong high-mode output because users need useful beam distance. A camping lantern may prioritize longer medium- and low-mode runtime because users need several hours of area lighting. An emergency light may be designed to provide a useful lighting period even as battery energy becomes low.
These products should not use exactly the same power-management strategy.
The important point is that brightness behavior is a product-design decision, not simply a symptom of battery capacity.
Importers should distinguish between several common approaches.
| Power-Management Approach | Typical Characteristic | Suitable Product Logic |
|---|---|---|
| Higher Constant Output | Attempts to maintain a more stable output until the available battery energy becomes insufficient | Work lights, selected professional flashlights, task-oriented lighting |
| Progressive Output Adjustment | Brightness gradually decreases as the battery reaches a lower-energy condition | Emergency lights, camping lanterns, daily rechargeable lighting, runtime-oriented products |
| Multiple User-Selected Modes | Users select high, medium, or low output according to the application | Headlamps, flashlights, lanterns, searchlights, multifunction lights |
The first approach can create a consistent visual experience, but maintaining high output requires continued electrical power.
The second approach can reduce power demand as the battery approaches a lower state of charge. Depending on the product design, this may provide additional useful lighting instead of maintaining the original output until shutdown.
The third approach gives more control to the user.
Many rechargeable products combine these approaches. A light may regulate high mode for a period, reduce output later, and also provide medium and low modes.
Importers should therefore avoid defining product quality through one sentence such as:
“Brightness must never decrease.”
The more appropriate objective is:
The brightness profile should match the product’s application, battery configuration, runtime target, and customer expectations.
Why Brightness May Gradually Decrease as Battery Voltage Drops
Rechargeable batteries do not provide exactly the same electrical condition throughout the complete discharge cycle.
As stored energy is used, battery voltage changes. The LED driver and control circuit must respond to those changing conditions.
Different products manage this in different ways.
Battery Voltage Changes During Use
A rechargeable battery starts operation at a higher state of charge and gradually moves toward a lower state.
The exact voltage behavior depends on:
Battery chemistry
Cell configuration
Load
Battery condition
Temperature
Protection circuit
Product power consumption
The LED itself also has operating requirements. The driver circuit determines how battery energy is converted into suitable electrical power for the LED.
LED Driver Design Matters
Some driver designs attempt to regulate LED current or power over a wider range of battery voltage.
This can help maintain a more stable output.
Other designs allow output to change more gradually as available battery voltage falls. This may be appropriate for products where cost, circuit simplicity, heat, runtime, or product positioning favor a different balance.
The buyer should therefore evaluate the complete product rather than assuming that one driver behavior is universally superior.
Low-Battery Output Adjustment Can Be Intentional
A rechargeable light may intentionally reduce output when the battery reaches a lower level.
This can be used to:
Reduce power consumption
Extend the remaining useful lighting period
Reduce electrical load near the end of discharge
Provide a visible indication that the battery is becoming low
Prepare the system for low-voltage protection
In this situation, the output change is part of brightness management or low-battery behavior.
It should not automatically be described as product failure or abnormal brightness degradation.
The important questions are:
When does the output begin to change?
Is the transition smooth or sudden?
Does the light remain useful?
How long does the lower-output period continue?
Does the product eventually shut down through low-voltage protection?
Does the behavior match the approved sample?
Thermal Step-Down and Low-Battery Dimming Are Different Behaviors
Not every brightness reduction during operation is caused by low battery energy.
High-output rechargeable lights may also reduce LED power when internal temperature rises. This is commonly used to control heat and protect the LED, battery, driver, housing, or surrounding components.
Importers should therefore distinguish between:
Battery-related output reduction
Temperature-related step-down
Timed automatic step-down
User-selected brightness changes
Low-voltage protection behavior
A light that becomes dimmer after several minutes on high mode may still have substantial battery energy remaining. In that case, the change may be related to thermal management rather than battery discharge.
During sample approval, the buyer should confirm when the brightness change occurs, whether the product is hot, whether output recovers after cooling, and whether the same behavior appears consistently across samples.
Low-Voltage Protection Ends the Discharge
Rechargeable products normally need a defined lower operating limit.
Once the battery reaches the product’s protection threshold, the system may:
Reduce output further
Show a low-battery indication
Flash an indicator
Automatically shut down
The exact sequence depends on the battery, PCB, driver, and product logic.

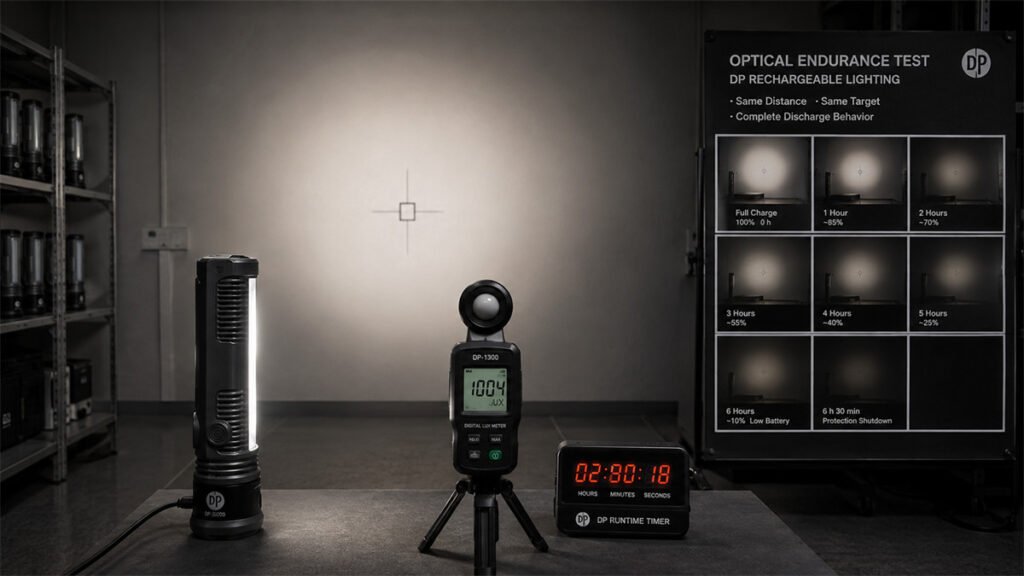

This means a normal operating curve can look like:
Full battery → normal brightness → gradual output adjustment → low-battery indication → protection shutdown
For some rechargeable lamps, this is a reasonable and intentional power-management strategy.
The buyer does not need every product to follow the same curve.
The buyer needs the behavior to be predictable, repeatable, and appropriate for the intended application.
DP’s article on replaceable and built-in battery designs explains how the battery structure itself can also affect product design, servicing, and positioning.

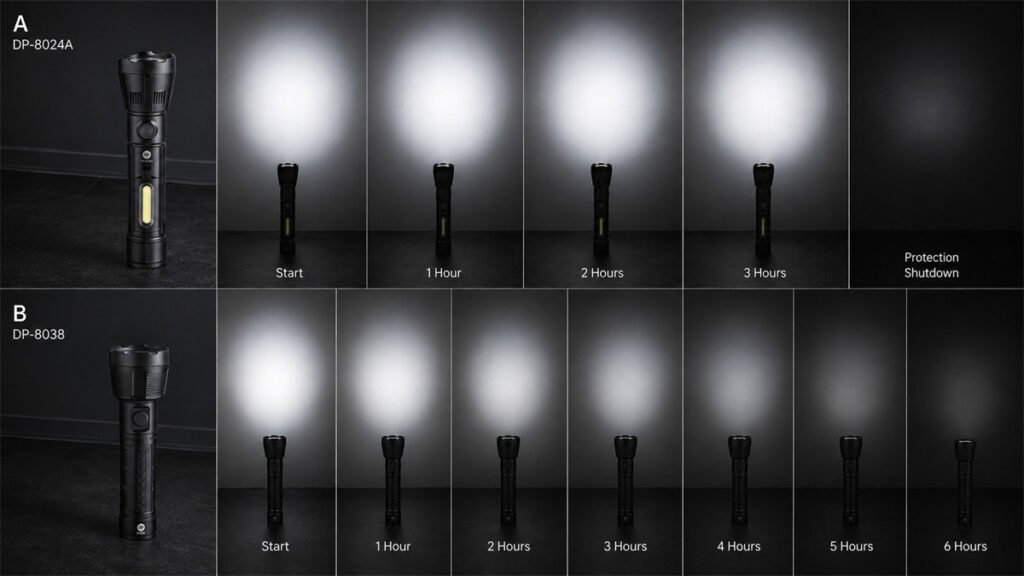

Constant Output vs. Progressive Dimming: Neither Is Always Better
Constant-output and progressive-dimming designs create different user experiences.
Importers should compare their advantages and trade-offs rather than treating one as the universal standard.
Constant-Output Strategy
A constant-output design attempts to maintain a relatively stable lighting level while sufficient battery energy remains available.
Potential advantages include:
More predictable brightness
Consistent task-lighting performance
Easier user expectations
Stronger professional positioning for selected applications
Less visible brightness change during much of the discharge period
This can be valuable for work lights, inspection lights, flashlights, searchlights, or other applications where the user expects a stable output.
However, maintaining high output requires power.
Depending on the battery and driver configuration, a constant-output product may:
Consume the remaining battery energy more quickly if it continues to maintain a higher power level instead of stepping down
Require a larger battery for the same target runtime
Generate more heat at higher modes
Reach low-voltage shutdown sooner after maintaining high output
Require more capable driver and thermal design
The final result depends on the actual circuit and operating mode.

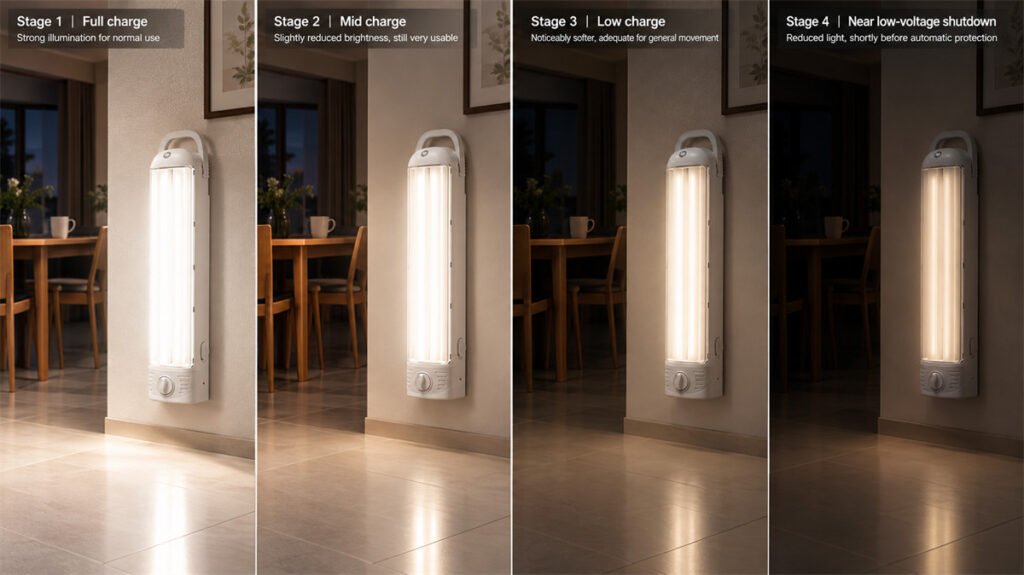

Progressive-Dimming Strategy
A progressive design allows the output to decrease as the available battery condition changes.
Possible commercial advantages include:
Longer remaining lighting at reduced power
Clearer indication that battery energy is becoming low
Lower electrical load near the end of discharge
Practical emergency or overnight use
A simpler balance between brightness and battery size for some products
This can make sense for camping lanterns, emergency lights, rechargeable bulbs, household lights, and products where having some useful light for longer can be more valuable than maintaining maximum output until a relatively sudden shutdown.
However, the output curve should still be controlled.
Importers should check whether:
Brightness declines too early
Output becomes unusably low
The reduction is smooth
Different samples behave consistently
The runtime claim explains the operating condition
Packaging does not imply constant maximum brightness for the entire stated runtime
What Matters Commercially
The right design depends on:
Product application
Target brightness
Battery configuration
Target runtime
Cost position
LED power
Driver design
Thermal structure
User expectations
Retail positioning
A professional work light may justify a larger battery and stronger regulation to maintain output.
A compact emergency light may prioritize a longer usable lighting period.
A camping lantern may combine regulated high and medium modes with a lower-output energy-saving mode.
A rechargeable bulb may use a different discharge strategy again because emergency backup time may be more important than maintaining the same level as normal mains-powered operation.
Therefore:
Constant brightness is not automatically good, and gradual brightness reduction is not automatically bad.
What matters is whether the power-management strategy supports the intended product.
How High, Medium, and Low Modes Change the Brightness-Runtime Trade-Off
Multiple brightness modes are one of the simplest ways to give users control over brightness and runtime.
Each mode represents a different power-management decision.
High Mode
High mode is normally designed to demonstrate the strongest lighting performance.
It may be used for:
Work
Searching
Repairs
Outdoor tasks
Emergency activity
Short-term maximum illumination
Because LED power is higher, high mode usually consumes battery energy more quickly.
Importers should confirm:
Initial brightness
Useful high-mode brightness
High-mode runtime
Heat behavior
Output change near low battery
Automatic step-down behavior where applicable
The longest product runtime should not automatically be associated with the highest brightness mode.
Medium Mode
Medium mode often provides the most commercially useful balance.
It may offer:
Sufficient illumination
Lower power consumption
Reduced heat
Longer runtime
More comfortable brightness for normal use
For many lanterns, desk lights, emergency lights, and household rechargeable lamps, the medium mode may be more representative of daily use than maximum output.
Low Mode
Low mode is designed primarily to extend operating time.
It can support:
Night lighting
Emergency backup
Tent lighting
Walking in dark spaces
Battery conservation
Extended low-power use
A low mode still needs to provide useful illumination.
Simply reducing brightness to an extremely low level to claim a very long runtime does not necessarily create meaningful customer value.
The buyer should evaluate whether the low mode remains suitable for the intended application.
Emergency, Flashing, and SOS Modes
Some rechargeable lights include emergency modes.
These may use:
Flashing white light
SOS patterns
Red light
Red flashing
Alternating sources
These functions have different power consumption from normal continuous lighting.
They should therefore have clearly defined usage logic and should not be confused with normal high-, medium-, or low-mode runtime.
Multi-Function Products Need Additional Clarity
Some rechargeable products combine:
Main light
Side light
Reading light
Emergency light
Power-bank output
Display
Sensors
Fan or other functions
If several functions operate at the same time, total power consumption changes.
Runtime should therefore be tested according to the actual operating mode and function combination.
DP’s article on battery capacity versus actual runtime explains why products with the same mAh rating can still have different operating times because voltage, power, efficiency, modes, and test conditions differ.
The main lesson is simple:
Brightness level and runtime claim should always be connected to the same operating mode.
How Importers Should Compare Rechargeable Lights Fairly
Rechargeable lighting should be compared as a complete energy and illumination system.
A specification such as:
Light A: 1,000 lumens
Light B: 800 lumens
does not provide enough information to conclude that Light A is the better product.
The buyer should also understand how each light produces and manages that output.
Important comparison points include:
Initial brightness
Useful brightness
Brightness mode
Lumen value by mode
Battery capacity
Battery voltage
Battery energy
LED power
Driver configuration
Runtime
Output behavior during discharge
Low-battery behavior
Low-voltage protection
Shutdown behavior
Charging time
Thermal behavior
Additional active functions
Importers who need a basic explanation of light-output terminology can review DP’s article on what lumens really measure.
Compare Initial Brightness and Sustained Usable Brightness
Initial brightness shows what the product can deliver near the beginning of operation.
However, the buyer should also observe what happens later.
Questions include:
Is brightness stable during the main operating period?
Does it gradually decline?
Does the product step down after a defined period?
Is the step-down related to battery condition or temperature?
Is the remaining light still useful?
When does low-battery behavior begin?
For some products, a slightly lower but more stable output may provide better practical performance than a very high initial peak.
For others, a strong initial output is commercially important.
Record the Output Curve Over Time
A single brightness measurement cannot describe how a rechargeable light performs throughout its runtime.
For sample comparison, buyers can record output at defined time intervals from full charge until the selected runtime endpoint.
The test conditions should confirm:
Selected operating mode
Full-charge condition
Battery configuration
Ambient temperature
Whether additional functions are active
Measurement position and distance
Measurement instrument
Initial output
Defined measurement intervals
Time of any automatic step-down
Time when low-battery behavior begins
Output immediately before shutdown
Final runtime endpoint
The same test method should be used for all samples being compared.
Buyers do not always need a perfectly flat brightness curve. The objective is to understand whether the actual output curve matches the intended product strategy and the claims used on packaging or sales materials.
Compare the Same Mode
High mode should be compared with high mode.
Medium should be compared with medium.
Low should be compared with low.
If one supplier publishes a runtime measured on the lowest mode while another publishes a brightness figure measured on the highest mode, the data cannot be directly combined.
Compare Battery Voltage and Capacity Together
Battery capacity in mAh remains useful, but voltage must also be considered.
Two batteries with the same mAh value may contain different nominal energy if their voltage configurations differ.
Importers should therefore confirm:
Nominal capacity
Nominal voltage
Cell quantity
Battery configuration
Runtime under the selected mode
Compare the End of the Runtime
The endpoint matters.
One product may define runtime until:
Automatic shutdown
LED completely turns off
Low-voltage protection activates
Brightness reaches a defined lower level
Another supplier may use a different endpoint.
Importers should define what “runtime” means before comparing samples.
Compare Low-Battery Behavior
Low-battery behavior should be treated as a specification.
The buyer can confirm:
Whether brightness gradually decreases
Whether the product switches to a lower mode
Whether an indicator appears
Whether the light flashes before shutdown
Whether the product shuts down directly
Whether behavior is consistent between samples
The goal is not to force every light into one low-battery behavior.
The goal is to make the behavior intentional and approved.
| Comparison Item | Incomplete Comparison | Better Buyer Evaluation |
|---|---|---|
| Brightness | Compare only maximum lumens | Compare lumens, mode, useful output, distribution, and output behavior |
| Battery | Compare only mAh | Compare capacity, voltage, battery configuration, and product power |
| Runtime | Compare only the longest published time | Compare the same mode, test condition, functions, and runtime endpoint |
| Low-Battery Behavior | Assume any brightness reduction is a defect | Confirm whether output adjustment is intentional, useful, and repeatable |
A fair comparison connects brightness, battery, runtime, and power-management behavior into one product profile.
What Importers Should Confirm Before OEM Sample Approval
Power-management behavior should be confirmed during the OEM sample stage.
The approved sample should represent not only the battery and LED hardware, but also how the product behaves from full charge to low-battery shutdown.
Importers should lock:
Target brightness
Lumen claim and corresponding mode
High, medium, and low brightness levels
Emergency or SOS modes
LED type and configuration
LED driver configuration
Battery type
Nominal battery capacity
Nominal battery voltage
Cell quantity and configuration
Target runtime by mode
Full-charge test condition
Low-battery brightness behavior
Output-adjustment logic
Low-voltage protection
Low-battery indication
Automatic shutdown behavior
Charging interface
Expected charging time
Whether use while charging is supported
Packaging brightness claims
Packaging runtime claims
Manual explanation of modes
Approved physical sample
The sample review should include the complete discharge process.
The buyer and factory can observe:
Brightness immediately after full charge
High-, medium-, and low-mode performance
Output after extended operation
Behavior as battery energy becomes low
Low-battery indication
Final shutdown
Charging recovery afterward
This provides a much better understanding than switching on the sample for several minutes and checking only initial brightness.
Charging design also needs to match the battery and runtime target. DP’s article on rechargeable product charging design explains how Type-C, Micro-USB, DC, and other inputs should be evaluated according to product requirements.
Once the power-management strategy has been approved, it should be transferred into production specifications. DP’s sample-to-mass-production process explains how approved configurations can be carried into bulk production.
The approved light should then become a reference for:
Brightness
Mode sequence
Battery configuration
Runtime
Low-battery behavior
Shutdown behavior
Charging performance
DP’s article on golden sample quality control explains why these approved specifications should remain consistent during mass production.
Changes to the battery cell, battery voltage, LED, driver, resistor values, PCB, firmware, thermal structure, or low-voltage setting may change brightness or runtime.
These changes should therefore be evaluated before mass production rather than treated as invisible component substitutions.
Packaging must also reflect the approved product behavior.
If the carton states a maximum brightness and a long runtime, buyers should make sure customers do not interpret both figures as occurring simultaneously unless that is actually the tested condition.
DP’s article on private-label packaging approval explains how importers can keep specifications, manuals, labels, and packaging claims aligned before printing.
For customized rechargeable lighting projects, buyers can review DP’s OEM and ODM manufacturing service for battery, LED, charging, housing, packaging, sample development, and production support.
Conclusion
Rechargeable LED lighting is always a balance between brightness, battery energy, and operating time.
Some products maintain output for as long as possible. Others gradually reduce brightness as battery energy becomes low. Multi-mode products allow users to select the balance themselves.
None of these strategies is automatically superior.
The correct design is the one that delivers suitable brightness, useful runtime, predictable low-battery behavior, and reliable protection for the intended application.
Planning a rechargeable flashlight, searchlight, headlamp, camping lantern, emergency light, desk lamp, or other LED lighting project? Send DP your target brightness, runtime, operating modes, battery configuration, charging design, order quantity, and price position. Our team can help balance LED power, battery capacity, driver behavior, and runtime before sample approval and mass production.
Partner with DP Light Today
Looking for competitive lighting & electrical products? Get direct access to our latest catalog and exclusive factory pricing.
*Fast response within 24 hours.
FAQ:Rechargeable LED Light Brightness and Runtime
A: Yes, some products are intentionally designed to reduce output as battery energy falls.
The important point is whether the behavior is controlled, repeatable, and consistent with the approved product design.
A: No. Constant output can provide a stable lighting experience, while progressive output adjustment may support a longer remaining lighting period at lower power. The correct strategy depends on the product application and runtime target.
A: High mode normally uses more LED power, so the battery energy is consumed more quickly.
The exact runtime also depends on battery voltage, capacity, driver efficiency, and other active functions.
A: No. Lumens should be compared together with operating mode, battery configuration, runtime, light distribution, driver behavior, and low-battery performance.
A: Depending on the model, DP can evaluate LED power, brightness modes, battery configuration, driver settings, charging design, and runtime targets.
The final result should be confirmed through sample testing before mass production.
Why Choose Us?
Export Market Distribution
