Control Design Insight: Useful Modes Matter More Than Mode Count
- Frequent-use modes should be easy to reach: Users should not need unnecessary button presses for normal operation.
- Special modes should match the product: SOS, strobe, sensors, red warning lights, and memory functions are useful only when they support a real application.
- The control logic is part of the product specification: Button sequence, long press, double press, memory, indicators, and shutdown behavior should be approved before mass production.
Introduction
Rechargeable LED products can now include far more than a simple ON/OFF switch.
A flashlight may offer high, medium, low, strobe, and SOS modes. A camping lantern may combine warm light, neutral light, cool light, and stepless dimming. A desk lamp may have several brightness levels and color-temperature settings. A headlamp may add motion sensing, red warning light, or independent spot and flood beams.
More functions can create real product value.
But more functions do not automatically create a better product.
If every lighting mode is placed into one long button cycle, users may need to press repeatedly just to turn the product off. If a flashlight always restarts in strobe mode, the memory function may become inconvenient rather than useful. If three CCT settings, five brightness levels, SOS, and additional functions all share one button, the specification may look impressive while the actual operating experience becomes confusing.
For importers, the objective should therefore not be to maximize the number of functions printed on the package.
The objective is to define a control system that matches:
Product category
Main use scenario
Target customer
Brightness requirements
Runtime strategy
Color-temperature configuration
Emergency functions
Number of buttons
PCB and firmware design
Retail price position
Guangdong DP Technology Co., Ltd. develops rechargeable lighting products across flashlights, searchlights, headlamps, emergency lights, camping lanterns, desk lamps, rechargeable bulbs, and other portable LED categories.
This article explains how importers can define rechargeable LED lighting modes, button sequences, special functions, stepless dimming, and mode memory before OEM sample approval.
Why More Lighting Modes Do Not Automatically Create More Value
A longer feature list can help differentiate a rechargeable light, but only when users understand and actually use those features.
Different lighting categories require very different operating logic.
A rechargeable flashlight may need:
High
Medium
Low
Strobe
SOS
A camping lantern may be better served by:
Warm light
Neutral light
High and low brightness
Stepless dimming
Night light
A desk lamp may prioritize:
Several brightness levels
Warm, neutral, and cool white
Brightness memory
Simple touch controls
A headlamp may use:
High beam
Low beam
Flood light
Red light
Motion sensor
An emergency light may be most effective with only:
Normal lighting
Low-power lighting
Emergency operation
The best configuration depends on product use, not on the number of functions printed on the box.
Feature Count and User Value Are Different
Suppose two camping lanterns are compared.
Lantern A has twelve combinations of brightness and color temperature.
Lantern B has:
Warm low
Warm high
Neutral medium
Stepless dimming
Lantern A has more modes numerically, but Lantern B may be easier for users to understand.
The same principle applies to flashlights.
A five-mode flashlight can be useful for outdoor and emergency applications. But if a basic household flashlight requires the user to cycle through high, medium, low, strobe, and SOS every time before switching off, some users may find the operation unnecessarily complicated.
The commercial question should be:
Which modes will customers actually use repeatedly?
Importers can divide functions into three groups.
| Mode Type | Examples | Control Priority |
|---|---|---|
| Primary Modes | High, medium, low, normal white light | Should normally be fast and intuitive to access |
| Secondary Modes | Warm light, night light, alternate beam, sensor mode | Can use a secondary button or long-press logic where appropriate |
| Special Modes | SOS, strobe, red flashing, emergency signal | Should be available without interfering with normal daily operation |
This approach allows importers to build products around real user behavior rather than specification-sheet quantity.
High, Medium, and Low Modes Serve Different Jobs
High, medium, and low modes remain the foundation of many rechargeable LED products.
They are not simply three versions of the same brightness.
Each mode can support a different balance between illumination, power consumption, heat, and runtime.
High Mode
High mode usually demonstrates the product’s strongest available output.
It may be valuable for:
Outdoor searching
Short-term task lighting
Repairs
Large-area illumination
Emergency work
Product demonstrations
For flashlights and searchlights, high mode can also support stronger beam visibility or longer useful throw.
However, high output normally places the greatest demand on the battery.
Importers should therefore avoid presenting the maximum lumen figure and the maximum runtime figure as though they automatically occur together.
DP’s article on brightness and runtime balance explains why LED output and battery operating time should be evaluated as one power-management system.
Medium Mode
Medium mode is often commercially more important than buyers initially expect.
For many products, it becomes the main everyday mode because it can provide:
Useful illumination
Lower power demand
Longer runtime
Reduced heat
More comfortable close-range use
A camping lantern used around a dining table may spend much more time on medium output than maximum brightness.
An emergency light may also provide its most practical balance on a middle power level.
Importers should therefore test medium mode as carefully as the maximum mode.
Low Mode
Low mode can support:
Night lighting
Tent lighting
Close-range reading
Walking indoors during a blackout
Long-duration emergency use
Battery conservation
The purpose of low mode is not simply to create the longest possible runtime number.
It still needs to provide useful illumination for the intended application.
A very low output that cannot support the advertised use may have limited commercial value even if its operating time is long.
Runtime Must Be Assigned to a Mode
Every meaningful runtime claim should answer:
Which mode?
Which battery configuration?
Which functions are active?
What defines the runtime endpoint?
DP’s article on battery capacity versus actual runtime explains why the same mAh rating can produce different operating times depending on voltage, product power, efficiency, operating mode, and test conditions.
For 112, the important extension is this:
The user interface determines which power level the customer actually selects.
Mode design is therefore directly connected to both customer experience and battery performance.
When SOS, Strobe, Sensor, and Special Modes Actually Make Sense
Special lighting modes can provide meaningful value when they match the product’s application.
They should not simply be added because the PCB can technically support them.
SOS Mode
SOS may be relevant to:
Outdoor flashlights
Searchlights
Camping products
Emergency kits
Selected headlamps
For these products, an emergency signaling function can strengthen the product’s positioning.
But a simple rechargeable desk lamp normally gains little from an SOS mode.
Confirm What “SOS” Actually Means
If a product is marketed with an SOS function, importers should confirm the actual flashing pattern rather than relying only on the mode name.
A genuine SOS signal is based on the internationally recognized Morse-code pattern of three short signals, three long signals, and three short signals.
Some products may provide a general flashing or warning mode that is commercially described as “SOS” even though the pattern is different. Buyers should therefore confirm the actual sequence before approving packaging, manuals, and online claims.
Strobe Mode
Strobe can be useful for selected outdoor, signaling, or emergency-oriented products.
For a standard household light, however, it may be a secondary function rather than part of the main operating cycle.
Importers should decide whether strobe should be accessed through:
Repeated short presses
Double press
Long press
A dedicated function button
The answer depends on how often the customer is expected to use it.

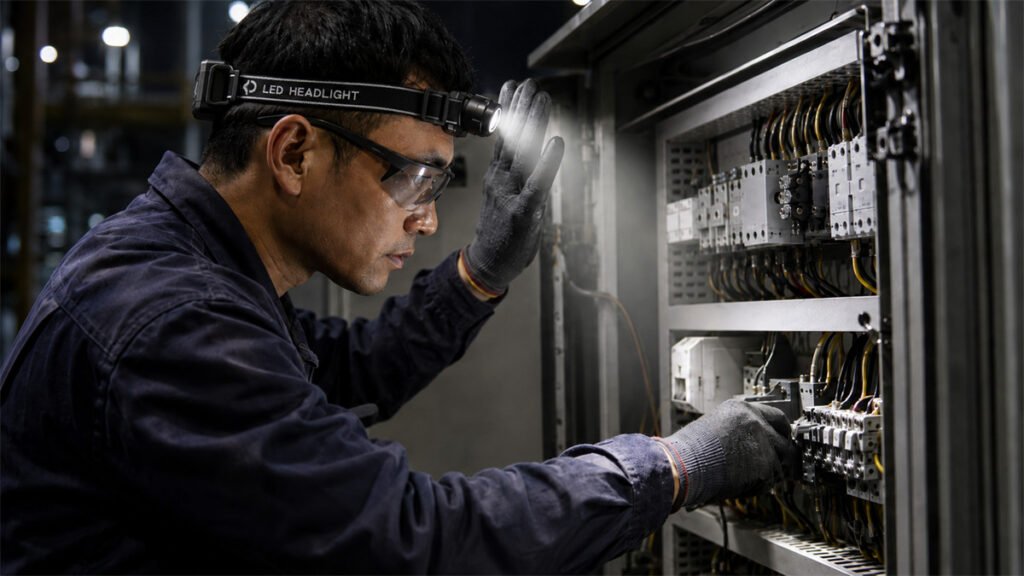

Motion Sensor
Sensor control is common in some headlamps and hands-free lighting products.
It can be useful when users need to switch the light without touching the main button.
Potential applications include:
Repair
Camping
Outdoor work
Situations where the user is wearing gloves
Hands-busy tasks
The importer should still confirm:
Sensor activation distance
Activation logic
Whether the sensor can be disabled
Accidental activation behavior
Whether the sensor remains active after switching modes
A sensor function should simplify operation rather than make the light unpredictable.
Red and Warning Lights
Red light or red flashing may be useful in:
Headlamps
Camping lanterns
Emergency products
Roadside lighting
Outdoor warning applications
But these modes should have a clearly defined role.
They should not be added to every rechargeable lighting category simply to increase the number of advertised functions.
Night-Light Modes
A low-level night-light function may make sense for:
Camping lanterns
Desk lamps
Bedside lights
Emergency lights
Its value lies in low power consumption and comfortable nearby illumination rather than maximum output.
Indicators Are Also Part of the Control Logic
A rechargeable light may also include:
Battery-level indicators
Charging indicators
Low-battery warnings
Power-bank status
Sensor indicators
These are not primary lighting modes, but they influence how users understand the product.
Indicator behavior should therefore be included in the OEM specification.
| Special Function | Possible Applications | Buyer Question |
|---|---|---|
| SOS | Outdoor, search, camping, emergency products | Does the target customer need signaling frequently enough to justify the mode? |
| Strobe | Selected flashlight and emergency applications | Should it be in the normal mode cycle or accessed separately? |
| Motion Sensor | Headlamps and hands-free work lighting | Does sensor operation simplify the main task? |
| Red / Warning Light | Camping, outdoor, emergency, roadside use | Is the warning function relevant to the product positioning? |
Special modes create the most value when they are intentional, easy to access, and relevant to the product.
Single CCT, Multi-CCT, and Stepless Dimming Need Different Controls
Color temperature and dimming introduce another layer of control design.
A single-CCT light can use very simple controls.
A three-CCT product may require a separate sequence for warm, neutral, and cool white.
Stepless dimming requires the user to understand how to enter, adjust, stop, and possibly recall a specific brightness.
These systems should not automatically use the same button logic.
Single-CCT Products
A single-CCT product may only need:
High → Medium → Low → Off
This approach can be practical for:
Flashlights
Searchlights
Basic emergency lights
Rechargeable bulbs
Utility lighting
Its advantages include:
Short operating sequence
Easy user training
Simple instructions
Fewer accidental mode changes
Multi-CCT Products
A multi-CCT light might provide:
Warm white
Neutral white
Cool white
DP’s article on 3000K, 4000K, and 6500K color temperature selection explains why different applications may need different CCTs.
The control question is how users switch between them.
Possible designs include:
One-button cycle
Warm → Neutral → Cool → Off

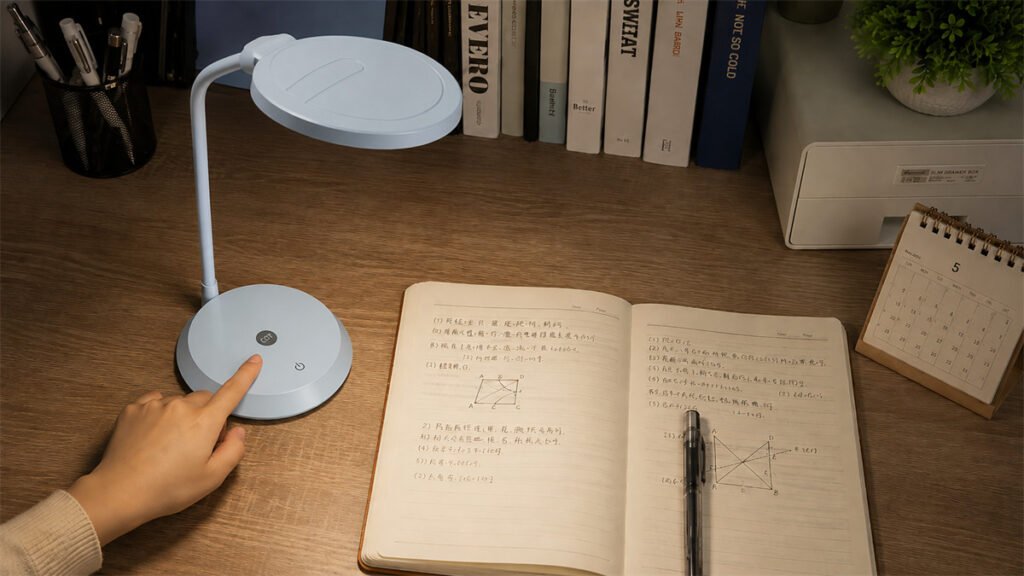

Separate brightness and CCT controls
Button 1: ON/OFF and brightness
Button 2: Warm / Neutral / Cool
Short press + long press
Short press changes brightness.
Long press changes CCT.
Each design has different advantages.
Separate controls may be easier to understand, but they require additional button components, housing space, PCB input, and user-interface design.

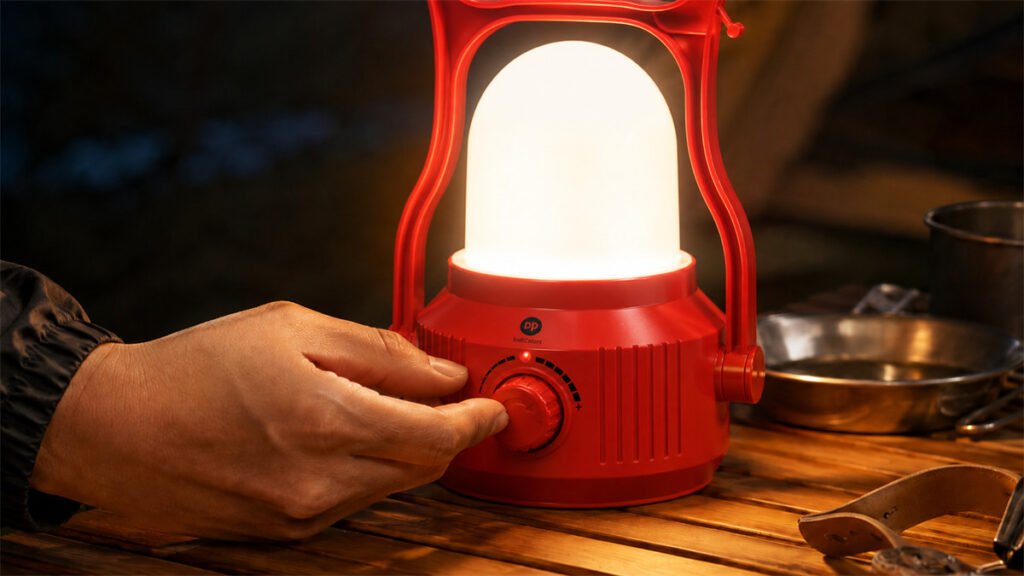

Stepless Dimming
Stepless dimming allows users to choose a brightness between the predefined maximum and minimum.
It is particularly suitable for:
Camping lanterns
Desk lamps
Reading lights
Atmosphere lighting
Control options can include:
Long press
Rotary knob
Touch slider
Encoder
Dedicated + / – buttons
Buyers should define:
Minimum brightness
Maximum brightness
Dimming direction
Dimming speed
Whether brightness stops immediately when the user releases the button
Whether the next long press reverses direction
Whether the selected level is remembered after shutdown
DP’s article on stepless dimming camping lantern design discusses how adjustable brightness can support more premium camping-light positioning.
Multi-CCT Plus Stepless Dimming Requires Careful Logic
A product offering both three CCTs and stepless brightness has many possible combinations.
The interface should answer:
Does each CCT remember its own brightness?
Does changing CCT reset brightness?
Does shutdown remember both CCT and brightness?
Does the product always restart at a standard setting?
Can the user reach normal white light quickly?
These decisions should be made before sample approval.
Otherwise, the hardware may work correctly while different production versions behave differently.

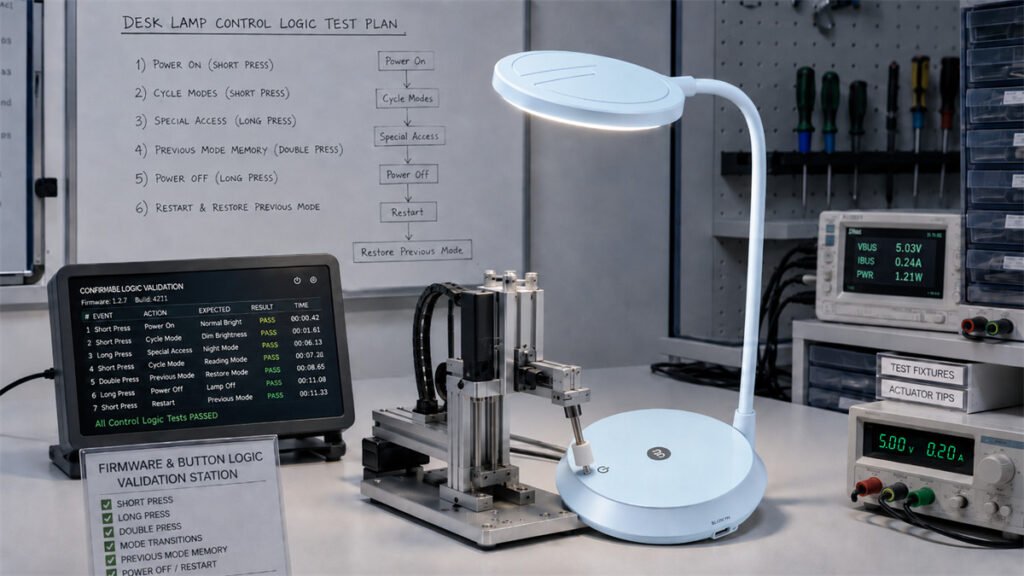

Button Sequence and Mode Memory Shape the User Experience
Two lights with the same LED, battery, and housing can feel completely different because of their button logic.
This is one of the most overlooked parts of rechargeable LED product development.

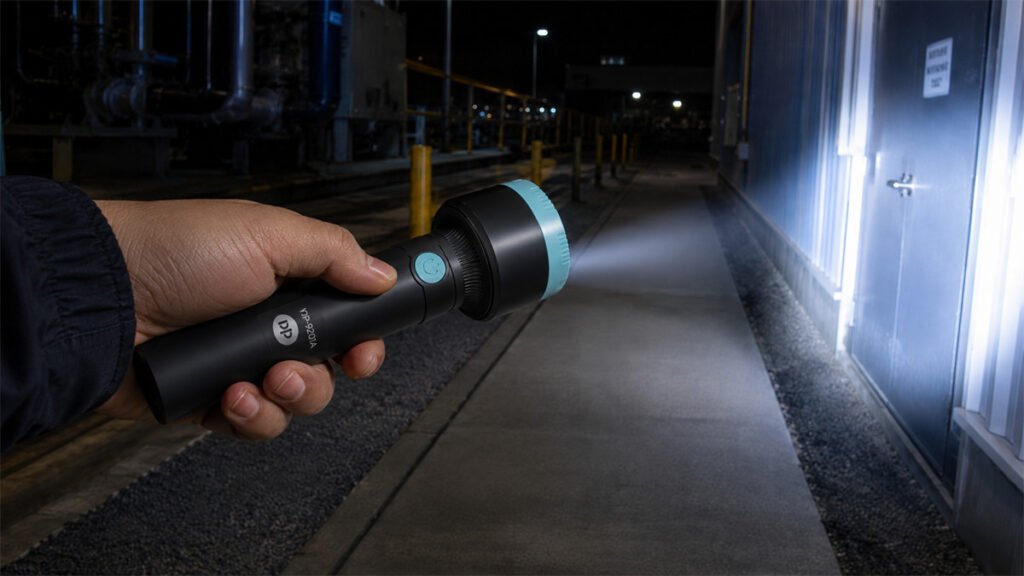

Consider a flashlight with five functions.
Sequence A
High → Medium → Low → Strobe → SOS → Off
This arrangement is simple from the PCB perspective because everything is placed in one cycle.
However, a user on low mode may need to pass through strobe and SOS just to reach OFF.
Sequence B
High → Medium → Low → Off
Special functions:
Double press → Strobe
Long press → SOS
The total number of functions is identical.
But the daily operating path is shorter.
Neither sequence is automatically correct for every product.
The buyer should decide which modes are normal and which are occasional.
Short Press, Long Press, and Double Press
Different button actions can separate functions.
Short press is generally useful for:
ON/OFF
Brightness cycling
Main-mode switching
Long press may be used for:
Stepless dimming
CCT switching
Entering a secondary function
Double press can provide faster access to:
Strobe
Turbo
SOS
Another special mode
However, too many press combinations can also become difficult to remember.
The final logic should be tested with someone who has not been involved in product development.
If a new user cannot understand the controls without a long explanation, the sequence may need simplification.
Independent Function Buttons
Some products benefit from two buttons.
For example:
Power button
ON/OFF
High / Medium / Low
Function button
Warm / Neutral / Cool
Sensor ON/OFF
Red light
Special mode
This can be useful for desk lamps, camping lanterns, headlamps, and more complex products.
But an additional button also affects:
Housing tooling
Waterproof or dust-resistant structure where applicable
PCB design
Assembly
Cost
Product size
The benefit needs to justify the added complexity.
Mode Memory
Mode memory determines what happens when the user switches the product on again.
Possible behaviors include:
Return to the previous mode
Always restart on high
Always restart on low
Restart at medium
Remember CCT but not brightness
Remember brightness but not special modes
Remember only if the product was off for a short period
There is no universally correct memory design.
A desk lamp may benefit from remembering the user’s preferred brightness and CCT.
A simple emergency light may be more predictable if it always starts in a standard normal-lighting mode.
A flashlight user may appreciate previous-mode memory but not want the product to restart in strobe.
As a general design principle, rarely used warning or emergency modes should not normally become the default restart state unless the product has a specific reason to require that behavior.
Importers should define these behaviors specifically.
| Control Decision | Questions to Confirm |
|---|---|
| Normal Mode Sequence | Which modes appear during repeated short presses? |
| Special Modes | Are SOS and strobe in the normal cycle, or accessed by long/double press? |
| Mode Memory | What setting appears when the product is switched on again? |
| CCT Memory | Does the product remember warm, neutral, or cool white? |
| Dimming Memory | Does the product remember the last stepless brightness level? |
| Low-Battery Behavior | Does brightness reduce, an indicator activate, or the product eventually shut down? |
Low-battery behavior should also be coordinated with the product’s brightness and runtime strategy rather than defined only as a user-interface function.
A good interface reduces the number of unnecessary actions without removing useful functions.
That is why lighting-mode design belongs in the OEM specification, not only in the user manual after production is complete.
What Importers Should Lock Before OEM Sample Approval
The complete lighting-control logic should be confirmed during sample development.
Importers should lock:
Number of lighting modes
Name and purpose of each mode
Brightness level of each mode
Color temperature of each mode
High / medium / low sequence
Short-press logic
Long-press logic
Double-press logic
Independent function buttons
SOS access
Strobe access
Sensor activation logic
Red-light or warning-light behavior
Stepless dimming range
Dimming direction and speed
Single-CCT or multi-CCT structure
Mode-memory behavior
CCT-memory behavior
Brightness-memory behavior
Low-battery brightness behavior
Indicator-light logic
Runtime of major operating modes
Charging-state indications
Shutdown behavior
Manual instructions
Packaging function claims
Approved physical sample
Define the Button Timing and Response
Button logic should be defined with measurable timing where the operating experience depends on press duration.
Buyers and factories may need to confirm:
Long-press activation time
Double-press interval
Button debounce behavior
Response delay after pressing
Whether holding the button causes repeated actions
How the product exits a special mode
Whether accidental double presses can trigger strobe or SOS
Whether the logic changes while charging
Whether the same timing is maintained at low battery
Memory retention after short and long shutdown periods
Terms such as “short press,” “long press,” and “double press” should not remain undefined in an OEM specification if they control important functions.
The approved sample should become the practical reference for button feel, response time, mode order, and transition behavior.
The best way to review the sample is to operate it as a customer would.
The buyer should test scenarios such as:
Switch the product on.
Move through all normal modes.
Switch the product off.
Switch it on again and check memory behavior.
Access SOS or strobe.
Return from a special mode to normal lighting.
Change CCT where applicable.
Adjust stepless brightness.
Run the product until low-battery behavior appears.
Recharge it and confirm whether the operating logic remains unchanged.
The buyer should also confirm whether the manual can explain the controls clearly.
A complicated sentence such as:
“Press once to change brightness, hold for two seconds to change color, double-click for warning mode, hold again to exit, and triple-click to reset memory”
may indicate that the interface deserves another review.
Lock Mode Logic Before Mass Production
Once the operating sequence is approved, it should become part of the production specification.
DP’s sample-to-mass-production process explains how approved product details can be transferred into bulk-production requirements.
The approved sample should become the reference for:
Brightness levels
CCT
Mode order
Button response
Sensor behavior
Memory
Indicators
Low-battery behavior
Shutdown logic
DP’s article on golden sample quality control explains why the approved sample should remain the reference when production begins.
A PCB, firmware, driver, button component, LED configuration, or battery-related change may affect the operating sequence.
These changes should therefore be reviewed before mass production.
Packaging and Manual Claims Must Match the Final Logic
If the carton states:
5 lighting modes
3 color temperatures
SOS
Stepless dimming
Mode memory
the actual bulk product must provide those functions in the approved way.
DP’s article on private-label packaging approval explains how importers can keep packaging artwork, manuals, labels, and final product specifications aligned.
The operating instructions should also use the same terminology as the packaging.
“Night mode,” “low mode,” and “energy-saving mode” should not refer to the same function differently across the carton, manual, and online listing unless the distinction is intentional.
For customized projects, DP’s OEM and ODM rechargeable lighting development can support LED configuration, brightness modes, CCT selection, PCB and button logic, battery and charging design, sample approval, packaging, and mass-production coordination.
What Importers Should Confirm Before OEM Sample Approval
Color temperature should be confirmed on the actual assembled rechargeable light before mass production.
A datasheet alone is not enough.
The final appearance can be affected by the LED, diffuser, lens, reflector, housing, brightness level, and production tolerance.
Importers should lock:
Target CCT
Acceptable CCT range
Single-CCT or multi-CCT design
LED type
LED quantity and arrangement
CCT at each operating mode
Brightness at each CCT
CRI requirement
Lumen target
Diffuser material
Lens or reflector configuration
Brightness modes
CCT switching sequence
Button-control sequence
Mode memory, if applicable
Battery configuration
Runtime under different light modes
Charging design
Packaging CCT descriptions
Manual mode descriptions
Approved physical sample
Approve the Complete Lamp, Not Only the LED
The buyer should view the assembled product under realistic conditions.
Checks may include:
Warm, neutral, and cool appearance
Consistency between samples
Light through the final diffuser
Appearance on white and colored surfaces
Brightness differences between CCT modes
Light distribution
Glare
Mode-switching logic
Runtime differences
Define the CCT Measurement Conditions
When CCT is measured numerically, the buyer and factory should agree on the measurement conditions before comparing samples.
The test record should define:
Operating mode
Brightness level
Battery charge condition
Warm-up time before measurement
Measurement distance and position
Measurement instrument
Whether the diffuser, lens, or reflector is installed
Ambient lighting condition
Target CCT
Acceptable CCT range
Sample quantity
Required consistency between samples
Multi-CCT products should be checked separately in each color-temperature mode.
The same assembled configuration should be used for sample approval and production verification. Measuring the LED alone may not represent the final appearance after light passes through the diffuser, lens, or other optical components.
For desk lamps, buyers can review eye-protection rechargeable desk lamp specifications.
Connect CCT to Brightness and Runtime
If a multi-CCT product uses different LED channels or different combinations of LEDs, power consumption may vary between operating modes.
Importers should therefore confirm brightness and runtime for the actual mode rather than assuming every CCT setting behaves identically.
DP’s article on brightness versus runtime in rechargeable LED lights explains how LED power, battery voltage, operating modes, and power-management strategy affect usable runtime.
Transfer the Approved CCT Into Production Specifications
After the sample is approved, the CCT requirement should be included in the production specification.
DP’s sample-to-mass-production process explains how importers can convert approved sample details into production-ready requirements.
The approved sample should then serve as a reference for:
White-light appearance
CCT
CRI
Brightness
Mode sequence
Diffuser appearance
Light distribution
Battery and runtime behavior
DP’s article on golden sample quality control explains why approved specifications should remain consistent when moving into bulk production.
If the LED source, LED bin, diffuser, PCB, driver configuration, current setting, or optical components change, the final light appearance may also change.
These changes should therefore be reviewed before mass production.
For customized lighting programs, DP’s OEM and ODM manufacturing service can support product selection, LED configuration, CCT, CRI, battery, charging, housing, packaging, sample development, and mass-production coordination.
Conclusion
Rechargeable LED lighting modes should be designed around how customers actually use the product.
High, medium, and low modes support different brightness and runtime requirements. SOS, strobe, sensors, red warning lights, and other special functions should match specific applications. Multi-CCT and stepless dimming need clear controls, while mode memory should make repeated use easier rather than less predictable.
For importers, button logic, mode sequence, indicators, memory behavior, and low-battery operation should all be confirmed before OEM sample approval.
Developing a rechargeable flashlight, headlamp, camping lantern, emergency light, desk lamp, searchlight, or other LED product? Send DP your required lighting modes, brightness levels, CCT options, special functions, button logic, battery configuration, runtime target, order quantity, and target market. Our team can help define the control system before sample approval and mass production.
Partner with DP Light Today
Looking for competitive lighting & electrical products? Get direct access to our latest catalog and exclusive factory pricing.
*Fast response within 24 hours.
FAQ:Rechargeable LED Lighting Modes
A: No. More modes can add value when they match real use scenarios, but unnecessary modes can make normal operation more complicated. The best configuration depends on the product category and customer.
A: Not necessarily. For some products, placing them behind a long press, double press, or separate function button can keep daily high-medium-low operation simpler.
A: It depends on the product. Desk lamps and camping lanterns may benefit from remembering preferred brightness or CCT, while other products may be more predictable when they restart in a standard mode.
A: Neither is universally better. Stepless dimming provides finer control, while fixed modes are easier to understand and repeat. The correct choice depends on product positioning and user needs.
A: Depending on the product and existing PCB design, DP can evaluate brightness modes, CCT switching, SOS or strobe access, dimming, sensors, indicators, and memory behavior during sample development.
Depending on the product and existing PCB design, DP can evaluate brightness modes, CCT switching, SOS or strobe access, dimming, sensors, indicators, and memory behavior during sample development.
Why Choose Us?
Export Market Distribution
