Battery Display Insight: More Information Is Useful Only When the Product Needs It
- Simple products: May only need charging and full-charge indication.
- Medium-capacity products: Three or four battery levels can give users a practical estimate without adding a full digital display.
- Higher-feature products: A numeric display can make remaining battery easier to understand, especially when several functions consume power.
- Accuracy claims need care: A displayed percentage is an estimate of battery state, not a guarantee of identical remaining runtime under every operating mode.
Rechargeable products increasingly do more than one job.
A rechargeable fan may combine several wind speeds, LED lighting, remote control, misting, Bluetooth audio, or USB output. A searchlight may offer several brightness modes and a side work light. A camping lantern may combine multiple CCT modes, charging functions, and emergency features.
As functions increase, users naturally ask a simple question:
How much battery is left?
This is where the battery level indicator becomes part of the product experience.
Some rechargeable products use only one small LED to show charging status.
Others use:
Three battery LEDs
Four battery bars
Segmented displays
Numeric digital displays
0–100% battery percentages
Low-battery warning lights
Charging animations
The most complex display is not automatically the best one.
A basic flashlight may work perfectly well with a simple charging indicator. A large-capacity rechargeable fan or multifunction searchlight may benefit from a clearer remaining-battery display because the user depends on the product for longer periods or operates several power-consuming functions.
For importers, selecting battery level indicators for rechargeable products should involve factors such as:
Battery size
Runtime
Number of functions
Product price tier
Frequency of use
User expectations
PCB design
Display power consumption
Housing space
Cost
OEM positioning
The important distinction is also not simply “LED versus digital.”
Buyers should understand what information the display actually provides.
A charging-status lamp may tell users that charging is in progress or complete.
A battery-level display estimates how much stored energy remains.
Those are two different jobs.
Why Battery Status Matters More as Rechargeable Products Add More Functions
A simple rechargeable light may have only two main states:
On
Off
Its user may not need detailed battery information.
But modern rechargeable products can operate under many different loads.
Consider a rechargeable fan.
The battery may power:
Low-speed fan
Medium-speed fan
High-speed fan
LED light
Misting system
Bluetooth speaker
USB output
The remaining operating time can change significantly depending on which functions are active.
The same applies to rechargeable lighting.
A flashlight operating on low mode can last much longer than the same product on high mode. A dual-light searchlight may consume more power when the front beam and side light operate together. A camping lantern may behave differently at maximum brightness than at a low night-light level.
The battery display therefore becomes a communication tool between the product and the user.
Battery Information Helps Users Plan
A user may need to know whether the product has enough energy for:
Another hour of fan use
An evening of camping
A night-time inspection
A power outage
A work shift
A trip away from a charger
The indicator does not need to predict the future perfectly.
It should give enough information for users to make a practical decision.
Bigger Batteries Can Increase the Value of a Clearer Display
A product with a small battery and short operating time may not justify an expensive display system.
But as battery capacity grows, users may rely on the product for longer periods.
This is particularly relevant to:
Large rechargeable fans
Searchlights
Emergency lights
Camping lanterns
Multifunction portable lights
Products with USB output
The more stored energy the product carries, the more useful it can be to show the user roughly how much remains.
More Functions Make One Runtime Number Less Useful
A specification sheet might say:
Runtime: 8 hours
But which mode?
If the product has several functions, a single runtime figure cannot describe every possible operating condition.
DP’s article on battery capacity versus actual runtime explains why battery capacity, operating power, voltage, efficiency, and test conditions should be considered together.
A battery indicator does not replace runtime testing.
It gives the user additional information while the product is operating.
No Digital Display Does Not Mean a Product Is Inferior
This distinction is important for product positioning.
A lower-cost flashlight or emergency bulb does not become a bad product simply because it lacks a numeric screen.
In many products, a simpler indicator can offer:
Lower cost
Lower standby power
Simpler PCB design
Smaller housing
Easier operation
Fewer display components
The display should match the product rather than become a mandatory feature across every SKU.

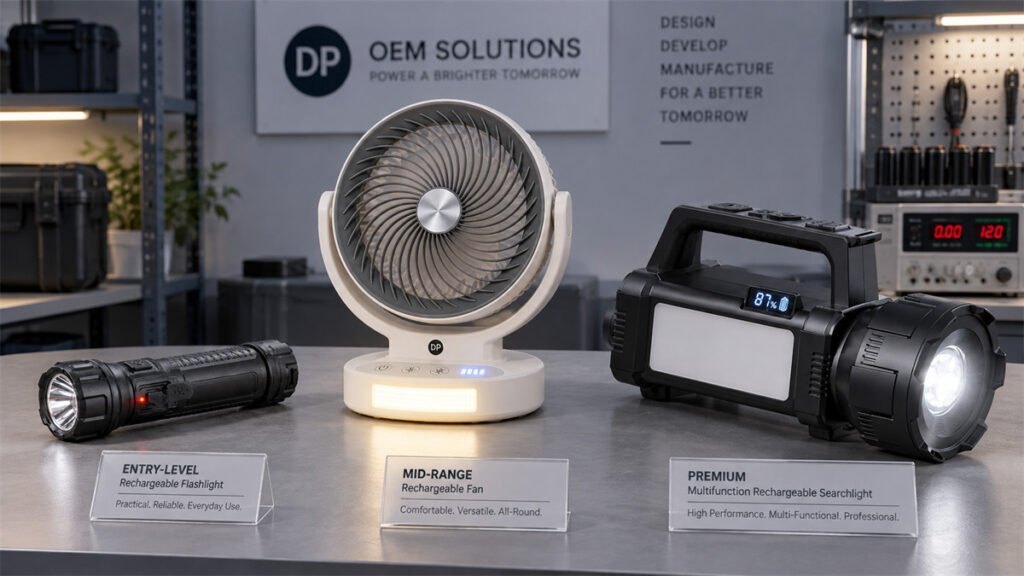

Single LED, 3-Level, 4-Bar, or Digital Percentage: What Changes?
Battery indication can be implemented at several levels of complexity.
Each approach provides a different amount of information.
| Indicator Type | Typical Information | Common Product Positioning |
|---|---|---|
| Single LED | Charging, full charge, or low-battery state | Simple and cost-sensitive products |
| 3-Level LEDs | Approximate low / medium / high remaining battery | Mid-range rechargeable products |
| 4-Bar Display | More segmented remaining-battery information | Fans, lanterns, searchlights and multifunction products |
| Digital Percentage | Numeric state-of-charge estimate such as 75% | Higher-feature or premium-positioned products where clearer status information adds value |

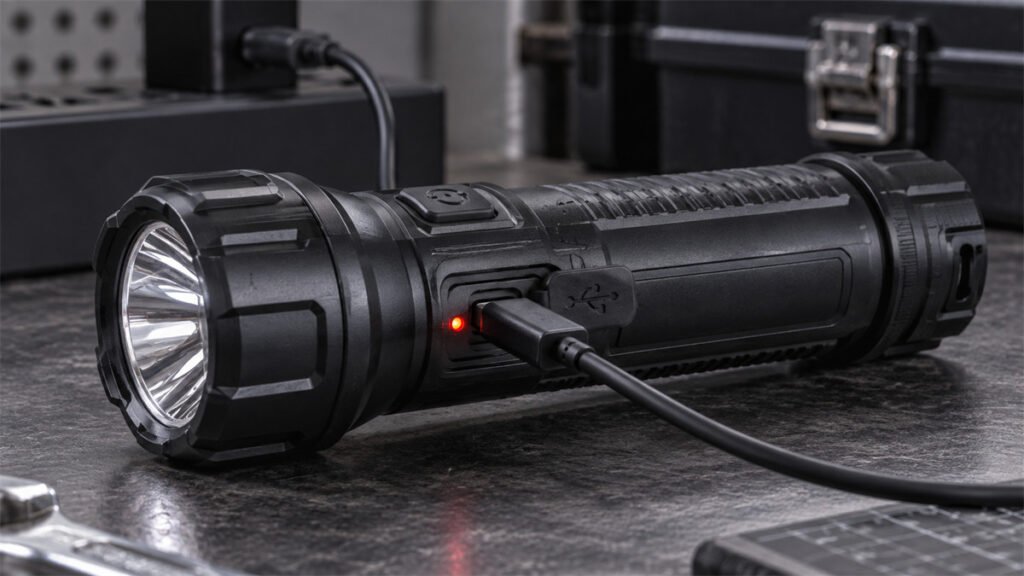

Single LED Indicators
A single indicator LED can be very effective when the product only needs to tell the user:
Charging
Fully charged
Low battery
Power on
Depending on the design, the LED may:
Change color
Flash
Turn off after full charge
Remain continuously illuminated
The exact logic should be defined in the product specification.
Importers should not assume that red always means charging and green always means full unless that is the approved design.
Three-Level Indicators
Three LEDs can provide a rough battery-state hierarchy.
For example, the product may visually communicate:
High
Medium
Low
This is more informative than one charging lamp while remaining relatively simple.
The buyer should still define what each level represents.
Without an agreed threshold logic, “three lights” is only a physical feature rather than a controlled battery-status system.

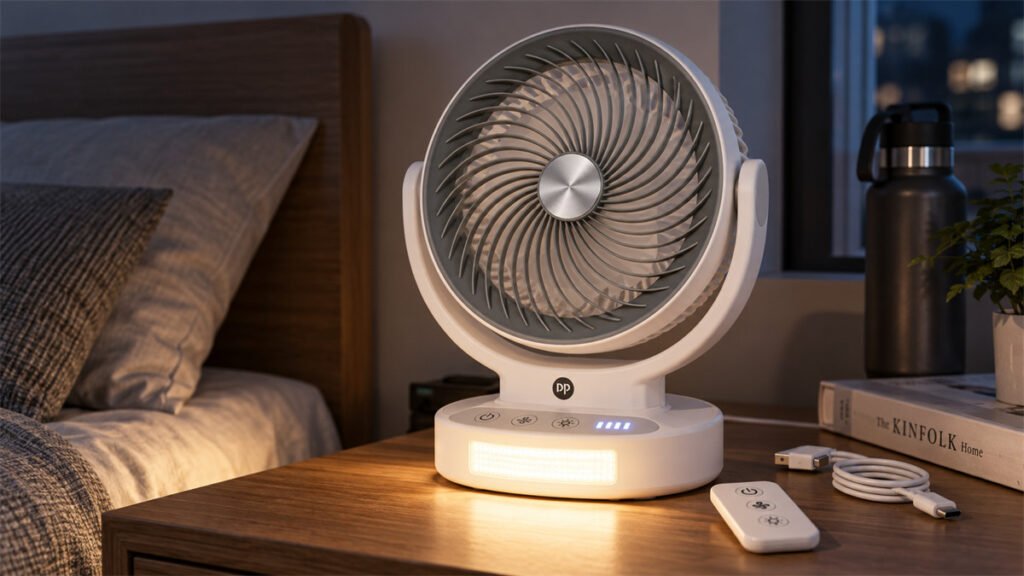

Four-Bar Displays
Four-segment displays can give users a slightly finer approximation of remaining battery.
They may be useful for products that are operated for longer periods, including:
Rechargeable fans
Camping lanterns
Searchlights
Emergency lights
Larger portable devices
Again, four bars do not automatically mean laboratory-level precision.
They simply divide the battery-state estimate into more visible steps.
Define the Battery-Level Thresholds and Transition Logic
Specifying “3 LEDs” or “4 battery bars” is not enough by itself.
The buyer and factory should also agree on how the indicator transitions between levels during charging and discharge.
The specification may define:
The battery condition represented by each LED or bar
When each level turns on or off
Whether charging and discharging use the same thresholds
Low-battery warning point
Full-charge indication
Behavior near the transition between two levels
Whether the display changes immediately when the operating load changes
Whether a short delay or filtering logic is used to avoid unstable indication
This is especially important because battery voltage can temporarily change when a high-power fan, LED mode, USB output, or other load is switched on.
The objective is not to force every product to use the same percentage thresholds. It is to make the indicator behavior stable, understandable, and repeatable for the approved battery and PCB configuration.

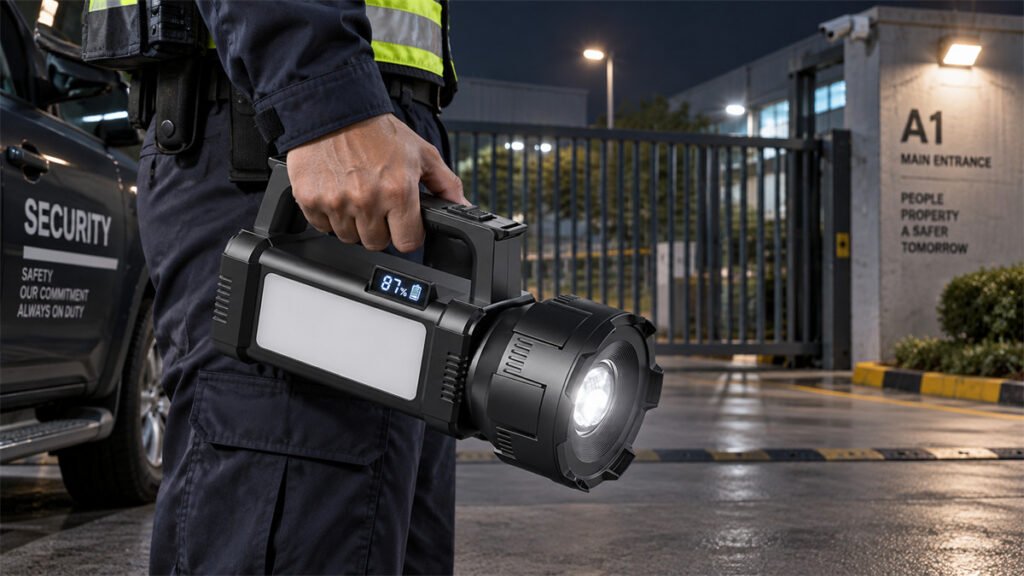

Digital Percentage Displays
A digital display can show values such as:
100% → 85% → 62% → 38% → 15%
This format is easy for users to understand.
It can also add perceived value to products positioned around:
Large battery capacity
Long runtime
Multifunction operation
Power-bank output
Higher retail price
However, adding a digital screen can also affect:
PCB design
Display components
Housing opening
Product dimensions
Standby current
Cost
Assembly
Visual design
The decision should therefore be commercial as well as technical.
Display Visibility Matters
Importers should also check:
Viewing angle
Brightness
Visibility in daylight
Visibility at night
Whether the display is too bright in dark environments
Whether the display is covered by the user’s hand
Whether it remains visible when the product is placed on a table
A display that exists on the specification sheet but is difficult to see is not necessarily useful.
Charging Status and Remaining Battery Are Not the Same Information
This distinction should be clearly defined during OEM development.
A product can show charging status without showing remaining battery.
It can also show remaining battery while operating but use a separate indication during charging.
These functions answer different questions.
Charging Status Answers: “What Is Happening Now?”
A charging indicator may tell the user:
Charging has started
The charging connection is detected
Charging is still in progress
Charging is complete
Possible implementations include:
Red LED while charging
Green LED when full
Flashing indicator
Increasing bar animation
Digital percentage increasing during charging
The specific behavior depends on the product.
DP’s article on rechargeable product charging design explains how Type-C, Micro-USB, DC input, charging ratings, and related system choices should be selected according to the product.
The battery-status display should work consistently with that charging system.
Remaining Battery Answers: “How Much Energy Is Available?”
A remaining-battery indicator may operate:
Continuously
For several seconds after power-on
After pressing a dedicated button
Only when battery level becomes low
During certain operating modes
This is a user-experience decision.
A constantly illuminated display may be convenient, but it also consumes some power and may be distracting in dark environments.
A temporary display can reduce unnecessary consumption and visual distraction.
A Product May Need Only One of These Functions
A basic rechargeable lamp may only need:
Charging / Full
A larger rechargeable fan may benefit from both:
Charging status + remaining battery level
A multifunction product may also show:
USB output status
Active charging
Low-battery warning
Power-bank mode
The best solution depends on how much information the user genuinely needs.
Indicator Logic Should Be Consistent
Users should not have to interpret contradictory behavior.
For example, importers should define:
What happens when charging begins?
Does the current battery level remain visible?
Do the bars animate?
What happens when charging reaches full?
Does the indicator remain on?
Does it turn off after a delay?
What happens when the battery becomes low during use?
This logic should be approved on the physical sample.
Why Battery Percentage Is an Estimate, Not an Exact Fuel Gauge in Every Product
A digital display showing 63% looks very precise.
But importers should understand what that number represents.
Battery state of charge is normally estimated from information available to the product’s electronics.
The exact method depends on the battery pack, PCB, BMS, controller, and product design.
Simpler systems may estimate battery level mainly from battery-voltage ranges.
More sophisticated systems may use additional information and more advanced state-of-charge estimation.
The key sourcing principle is:
A displayed battery percentage should not automatically be interpreted as an exact prediction of remaining runtime.
Battery Voltage Changes With Operating Conditions
Battery voltage can vary according to:
State of charge
Current load
Battery chemistry
Cell condition
Temperature
Internal resistance
A product operating on high mode can place more load on the battery than when operating on low mode.
Therefore, the displayed estimate may behave differently when the load changes.
50% Battery Does Not Necessarily Mean 50% of Maximum Runtime Remains
Suppose a rechargeable fan displays 50%.
If the user runs:
Low speed only
the remaining operating time may be very different from:
Maximum speed + LED light + another high-power function
The same is true for rechargeable lighting.
A searchlight at 50% battery may last significantly longer on low mode than on maximum brightness.
The display estimates battery state.
Runtime depends on what the user asks the product to do next.
Simple Bar Indicators Can Be Intentionally Approximate
A three- or four-level LED display is usually not trying to communicate exact percentage values.
That can actually be appropriate.
Users may only need to know:
Plenty of battery remains
Battery is around the middle range
Battery is becoming low
Recharge soon
For many products, this is sufficient.
Digital Displays Need Stable Logic
If a product uses numeric percentages, the behavior should still feel reasonable.
Importers can check whether:
The percentage falls gradually
It jumps unexpectedly
It changes greatly when switching modes
It recovers after the load is reduced
Charging percentage progresses logically
Full charge is displayed consistently
Some movement can reflect the estimation method and operating load, but the system should still support a clear user experience.
Avoid Overpromising Display Accuracy
Packaging should avoid implying that:
63% battery = exactly 63% of the original runtime remains.
A safer and more useful positioning is:
The battery display provides an estimate of remaining battery state to help users plan charging and operation.
That is especially important for products with multiple power levels.
DP’s article on battery capacity versus actual runtime is a natural technical companion to this topic.
Runtime testing explains how long the battery can operate under defined conditions.
Battery-status indication explains how the product communicates its remaining state to the user.
Which Indicator Design Fits Fans, Searchlights, Lanterns, and Other Rechargeable Products?
The right display depends heavily on the product category and commercial positioning.
Rechargeable Fans
Fans are strong candidates for clearer battery displays because they often have:
Several speed levels
Long operating periods
Large batteries
Lighting
Remote controls
Misting
USB output
Other optional functions
A three-level, four-bar, or digital display may help users understand when recharging is needed.
But a compact low-cost fan may still justify a simpler indicator.
Flashlights
A simple flashlight may only need:
Charging indicator
Low-battery warning
A larger multifunction flashlight with side lighting, power-bank output, or high-capacity battery may benefit from a more detailed display.
Product complexity should drive display complexity.
Searchlights
Searchlights often have:
Larger battery packs
Higher output
Longer intended use
Multiple modes
Front and side lighting on some models
For these products, a clearer remaining-battery indicator can have practical value.
Users may want to know whether sufficient battery remains before beginning a longer inspection or outdoor task.
Camping Lanterns
Camping lanterns are also good candidates for multi-level displays.
Users may rely on them for several hours away from a charger.
A clear indicator can support:
Night-time planning
Multi-day camping
Low-mode usage decisions
Power-bank use, if included
Emergency Lights
Emergency products need predictable and understandable status information.
Depending on the product, buyers may prioritize:
Simple battery status
Charging indication
Low-battery warning
Clear full-charge state
The display does not need to be visually complex if the product itself is straightforward.
Desk Lamps
A rechargeable desk lamp may use:
One charging LED
Battery bars
Digital display
The correct choice depends on:
Battery size
Daily recharge habits
Product price tier
Display aesthetics
Other functions
A minimalist premium desk lamp may intentionally avoid a visually dominant battery screen.
A multifunction desk product may choose the opposite.
Good-Better-Best Product Portfolios Can Use Different Indicator Levels
Battery display is also a useful product-tiering tool.
DP’s article on rechargeable product portfolio strategy explains how importers can create differentiated entry-level, mid-range, and premium configurations without treating lower-price tiers as lower quality.
Battery indicators can support that strategy.
Match the Indicator Level to the Product Tier
Battery indication can also support product differentiation across a rechargeable product range.
Entry-level products: A charging/full indicator or simple low-battery warning can provide essential information while keeping the BOM and controls simple.
Mid-range products: Three-level or four-bar indicators can provide clearer remaining-battery information without requiring a full numeric display.
Premium or multifunction products: Digital percentages or integrated displays can support more complex battery use and higher perceived value where the added hardware is justified.
These are positioning options rather than fixed quality rankings. A simple, stable indicator can be a better design choice than an unnecessary digital display.
The important point is that these are product-positioning options, not fixed quality rankings.
A well-designed single-LED indicator can be better for a simple product than an unnecessary digital screen.
What Importers Should Lock Before OEM Sample Approval
Battery indication should be treated as part of the approved user interface, not as a minor cosmetic detail added near the end of development.
Importers should confirm:
Indicator type
Single LED, multi-LED, bar, or digital display
LED quantity
Indicator colors
Battery-level thresholds
Percentage-display logic, if applicable
Charging indication
Full-charge indication
Low-battery warning
Flashing behavior
Charging animation, if applicable
Display brightness
Viewing angle
Display location
Display duration after power-on
Whether the indicator remains continuously on
Whether a dedicated battery-check button is required
Interaction with fan-speed or lighting-mode controls
Behavior during charging
Behavior during discharge
Behavior during low battery
Behavior during USB output, if applicable
Standby display behavior
PCB configuration
Battery configuration
Charging system
User-manual description
Packaging claims
Approved physical sample
Define the Indicator Together With the Charging System
The display should match the charging design.
DP’s article on rechargeable product charging design explains how the charging interface, rated input, cable, adapter, charging behavior, and product configuration should be confirmed during sample development.
The battery display should be tested with the actual charging configuration intended for production.
Match the Display to the Battery Architecture
Built-in and replaceable batteries may create different user expectations.
DP’s article on built-in and replaceable battery designs explains how battery architecture affects product structure and servicing.
For example, a large sealed built-in battery may benefit more from a clear remaining-battery display because users cannot simply exchange the battery immediately.
A replaceable-battery product may use a different indication strategy depending on its application.
Connect Battery Status to Product Controls
The display is part of the product interface.
It may share:
Buttons
PCB logic
Mode memory
Indicator LEDs
Display windows
with other controls.
DP’s article on rechargeable product control logic explains why button sequences and operating behavior should be defined before mass production.
The battery indicator should follow the same principle.
Define the Indicator Test Conditions
Battery-indicator behavior should be evaluated under defined conditions rather than by checking only whether the LEDs or display can turn on.
The test record may include:
Final battery type and capacity
Initial battery state
Product operating mode
Electrical load during discharge
Charging input and charger configuration
Ambient temperature
Resting time before reading battery status
Indicator thresholds
Low-battery warning point
Shutdown point
Full-charge indication
Number of samples
Whether voltage, current, or other battery data is recorded
Behavior after switching between high and low loads
For multifunction products, the indicator should be checked under more than one meaningful load condition.
The same test method should be used when comparing the approved sample, mass-production samples, and repeat orders.
Test Real Discharge Behavior
During sample approval, buyers should not only verify that the display lights up.
Operate the product and observe:
Full battery indication.
High-load operation.
Medium or low-load operation.
How the indicator decreases.
Low-battery warning.
Product shutdown behavior.
Charging restart.
Full-charge indication.
This helps confirm whether the user-facing display behaves consistently with the actual product.
Transfer the Approved Logic Into Mass Production
Indicator behavior can change if the factory changes:
PCB
Firmware
Battery
BMS
Charging circuit
LED display
Digital display module
Therefore, the approved behavior should be recorded.
DP’s sample-to-mass-production process explains how approved specifications can be transferred into bulk-production requirements.
DP’s article on golden sample quality control explains why the approved reference sample can help prevent specification drift in later production and repeat orders.
For customized rechargeable fans, lights, searchlights, lanterns, desk lamps, and other battery-powered products, buyers can review DP’s OEM and ODM rechargeable product development for battery, charging, PCB, display, controls, housing, packaging, sample, and production configuration support.
Conclusion
The best battery indicator is not necessarily the most complex one.
A single LED may be enough for a simple rechargeable product.
Three or four battery levels may give users practical information without adding a full digital screen.
A numeric percentage display can create more intuitive status information for larger-capacity, multifunction, or premium products.
For importers, the correct choice should match:
battery capacity, runtime, functions, product tier, PCB design, user expectations, cost, and intended use.
And whatever display is selected, its meaning should be clearly defined.
Charging status, remaining battery state, low-battery warning, and estimated percentage are different pieces of information.
A good rechargeable product does not simply show more numbers.
It gives the user enough information to understand when to keep using the product—and when to recharge it.
Planning an OEM rechargeable fan, flashlight, searchlight, camping lantern, emergency light, desk lamp, or other battery-powered product? Send DP your battery configuration, runtime target, charging design, indicator requirements, display type, operating modes, product positioning, order quantity, and destination market. Our team can evaluate the battery-status interface together with the complete electrical and product configuration.
Partner with DP Light Today
Looking for competitive lighting & electrical products? Get direct access to our latest catalog and exclusive factory pricing.
*Fast response within 24 hours.
FAQ: Battery Level Indicators for Rechargeable Products
A: No. A digital percentage provides more detailed information, but it also adds display hardware, PCB requirements, cost, housing space, and some power consumption. A simpler indicator may be more appropriate for basic products.
A: Not necessarily. The display estimates battery state, while remaining runtime depends on the active load. High fan speed or high-brightness lighting can consume energy much faster than lower modes.
A: A charging indicator tells the user whether charging is occurring or complete. A battery-level indicator estimates how much battery state remains available for use.
A: Not always. Continuous display can be convenient, but temporary indication may reduce unnecessary power consumption and visual distraction. The right behavior depends on the product and intended use.
A: Yes. Indicator type, thresholds, colors, charging behavior, low-battery warning, display duration, percentage logic, and user-manual description should all be confirmed before mass production.
Why Choose Us?
Export Market Distribution
