LED Color Consistency Insight: Nominal CCT Is Only the Starting Point
- 6500K is not a single visual point: LEDs within the same nominal CCT category can still show small differences in white-light appearance.
- Binning helps control variation: LED manufacturers sort production according to defined optical and electrical characteristics.
- The complete lamp matters: Diffusers, lenses, reflectors, current levels, and LED arrangement can change the final visual result.
- Repeat orders need references: Approved samples and written specifications help maintain a more consistent appearance across production batches.
Two rechargeable LED lights can both be specified as 6500K and still look slightly different when switched on side by side.
One may appear slightly cooler. Another may look more neutral. A third may show a subtle tint difference even though all three products fall within the same general cool-white specification.
For an importer, this does not automatically mean that one LED is genuine and another is defective.
LEDs are manufactured electronic light sources with normal production tolerances. A nominal correlated color temperature such as 3000K, 4000K, or 6500K describes an important part of the light appearance, but it does not describe every possible visual difference between individual LEDs or production batches.
Color consistency can also be influenced by:
LED binning
CCT tolerance
Chromaticity variation
LED supplier and specification
Brightness level
Operating current
Diffuser material
Lens and reflector
LED arrangement
Optical distance
Housing and internal surfaces
Production-batch control
This becomes especially important for OEM and private-label programs.
A buyer may approve a rechargeable camping lantern with a specific cool-white appearance, place the first order, and then reorder several months later. If the repeat order is specified only as “same model, 6500K,” the requirement may not fully describe the visual appearance that was originally approved.
The better approach is to treat white-light appearance as a controlled product specification.
For importers, the key question is not:
“Can every LED look absolutely identical?”
A more useful question is:
“How tightly should the LED color be controlled for this product, and how will the approved appearance be maintained across samples, mass production, and repeat orders?”

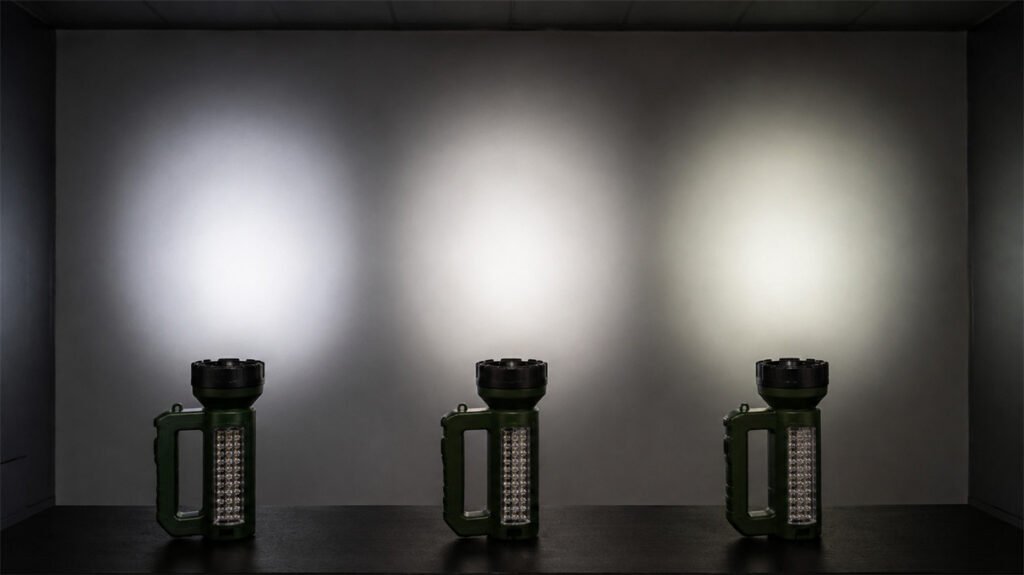

Why Two “6500K” LEDs May Not Look Exactly the Same
A CCT value such as 6500K is useful, but it should not be interpreted as a guarantee that every LED carrying that nominal specification will look visually identical.
DP’s article on 3000K, 4000K, and 6500K color temperature selection explains how importers can select warm, neutral, or cool white according to product application.
Once a target such as 6500K has been chosen, another question appears:
How much visual variation is acceptable inside that target?
CCT Describes Only Part of White-Light Appearance
Two LEDs may have similar correlated color temperatures while still showing slight differences in tint.
CCT mainly describes the warm-to-cool direction of white light. It does not fully describe whether the color point lies slightly above or below the reference white-light locus, which can influence whether the light appears more greenish or more pinkish.
For example, buyers may describe the difference visually as:
Slightly cooler white
Slightly more neutral white
Slightly bluish white
Slightly greenish or another subtle tint difference
These descriptions should not replace measurement, but they illustrate an important sourcing point:
Nominal CCT does not describe every aspect of perceived white-light color.
For products where visual matching matters, the buyer should therefore go beyond simply writing “6500K” in the specification sheet.
Manufacturing Tolerance Is Normal
LED production involves manufacturing tolerances.
Individual LEDs coming from a production process do not all emerge with perfectly identical optical and electrical characteristics.
Manufacturers therefore classify and sort LEDs according to defined ranges.
The size of the acceptable range can affect how closely different LEDs match each other.
For a value-oriented emergency light, an importer may accept a broader visual range than for a premium desk lamp where several LEDs are visible through the same diffuser.
This is not simply a question of “high quality” versus “low quality.”
It is a question of how tight the product requirement needs to be.
Product Positioning Determines the Required Consistency
Consider three examples.
A basic rechargeable flashlight uses one LED and is sold mainly as a utility light. A small visual shift between production lots may be less noticeable to the end user.
A desk lamp uses a long row of LEDs behind a diffuser. If different LED groups visibly differ in color, the variation may become easier to notice.
A premium camping lantern uses warm, neutral, and cool-white channels. The buyer may expect each CCT mode to have a clearly defined and repeatable appearance.
These products do not need identical sourcing specifications.
The correct color-consistency requirement should match:
Product category
Price position
Number of LEDs
Optical structure
Target market
Buyer expectations
Repeat-order requirements

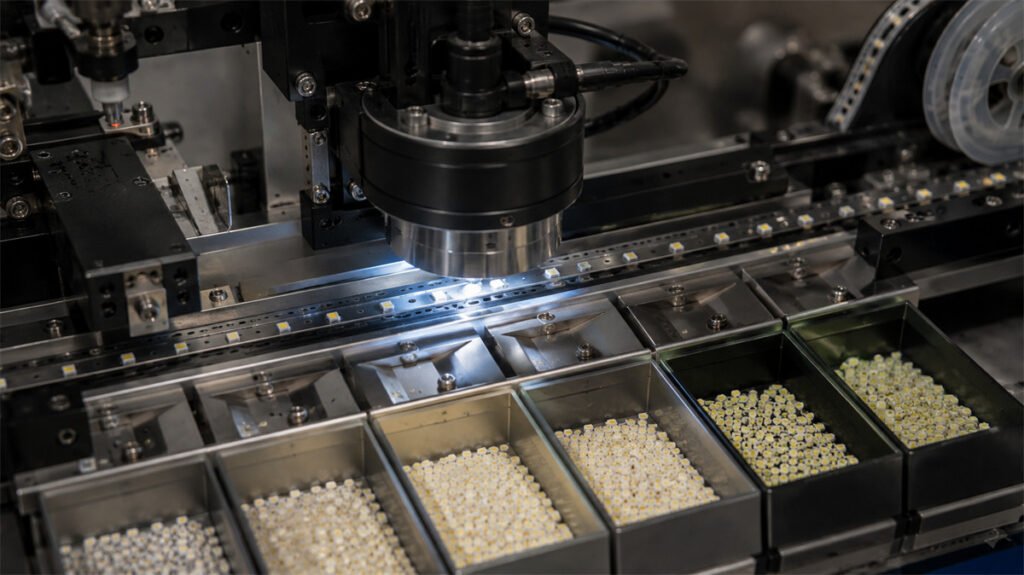

LED Binning Helps Manufacturers Control Color and Performance
LED binning is one of the main tools used to organize normal manufacturing variation.
After LEDs are produced and tested, manufacturers may classify them into groups according to selected characteristics.
Depending on the LED supplier and product, binning may consider parameters such as:
Chromaticity or color
CCT
Luminous flux
Forward voltage
Other optical or electrical characteristics
Importers do not need to become semiconductor engineers to understand the commercial implication.
The key point is:
Two LEDs can belong to the same broad nominal CCT category while coming from different bins or tolerance ranges.
Those differences can influence how closely finished products match visually.
A Narrower Requirement Can Improve Matching
If an OEM project requires closer white-light consistency, the buyer and manufacturer may need to define a tighter sourcing range.
SDCM and Chromaticity Bins Can Help Define Tolerance
Where tighter visual matching is required, LED suppliers may describe color consistency using chromaticity bins, MacAdam ellipses, or SDCM values.
These methods help define how far LED color points are allowed to vary around a target area.
In general, a tighter tolerance can make differences between LEDs less noticeable, but importers should not automatically specify the narrowest possible range for every rechargeable light.
The appropriate requirement depends on:
Product category
Number of LEDs
Viewing distance
Diffuser and optical mixing
Retail positioning
Production volume
LED availability
Cost and lead time
For many OEM projects, the practical objective is to define a measurable tolerance that supports the required visual consistency without creating unnecessary sourcing restrictions.
This can be particularly relevant for:
Multi-LED desk lamps
Camping lanterns
Rechargeable bulbs
Emergency lights with LED arrays
Products displayed side by side in retail
Repeat orders that need to resemble earlier production
However, tighter requirements may also affect:
LED sourcing flexibility
Component availability
Cost
Lead time
Supplier selection
This is why importers should not automatically request the narrowest possible tolerance for every product.
The commercial value of tighter matching should justify the sourcing requirement.
Binning Does Not Replace Final-Product Approval
Even if the LED specification is well controlled, the buyer should still approve the complete lamp.
The LED is only one part of the optical system.
A carefully selected LED can look different after it is installed behind:
A diffuser
A reflector
A colored lens
A thick translucent cover
A textured optical surface
Therefore:
LED bin control and finished-product visual approval should work together.
DP’s article on COB and SMD LED technology provides additional background on different LED configurations used in rechargeable and emergency lighting products.
Brightness and Electrical Conditions Can Also Matter
LED appearance should be checked in the real operating configuration.
A product may use:
High mode
Medium mode
Low mode
Several CCT channels
Stepless dimming
The LED current or active LED combination can change between these modes.
DP’s article on rechargeable LED lighting modes explains why mode logic should be defined before production.
For color-consistency evaluation, the buyer should therefore identify the exact mode in which color is being judged.
| Specification | What It Controls | Buyer Relevance |
|---|---|---|
| Nominal CCT | General warm, neutral, or cool-white direction | Defines the main color-temperature target |
| CCT / Chromaticity Range | Permitted variation around the target | Helps determine how closely different LEDs should match |
| Luminous Flux Bin | Light-output grouping | Helps control brightness consistency where required |
| Approved Finished Sample | Complete visual result after assembly | Provides a practical reference for production and repeat orders |
The LED Chip Is Not the Only Thing That Changes Perceived Color
Importers sometimes focus entirely on the LED specification.
But customers do not look directly at an LED datasheet.
They look at the complete lamp.
The optical and mechanical system can influence how the final white light appears.
Diffusers
Diffusers are especially important in:
Camping lanterns
Emergency lights
Desk lamps
Rechargeable bulbs
Area lights
Common designs may use:
Milky plastic
Frosted surfaces
Textured covers
Translucent optical materials
The diffuser can change:
Light mixing
Glare
Uniformity
Apparent tint
Brightness distribution
This means a buyer should not approve the LED source first and assume the finished lantern will look exactly the same.

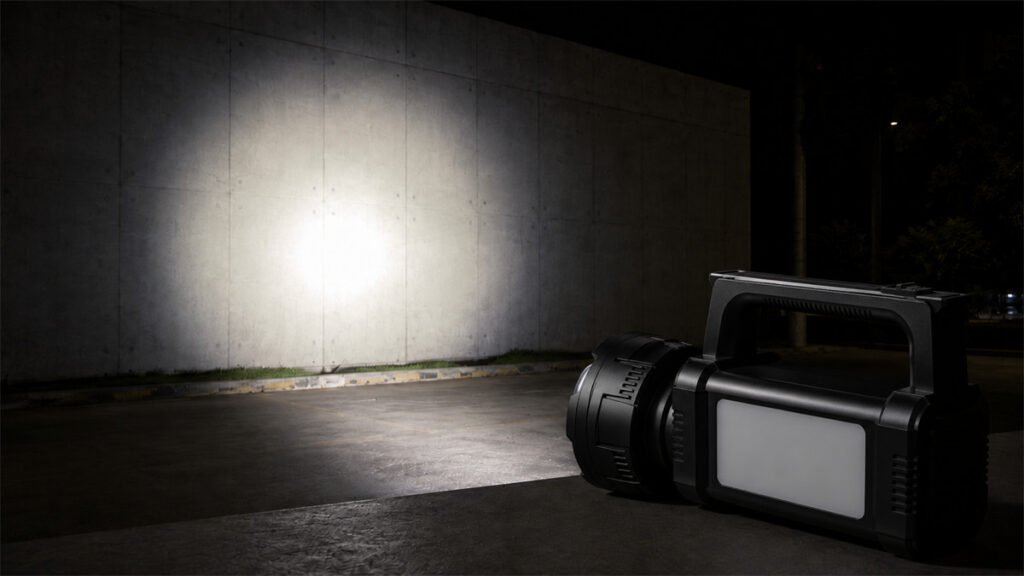

Lenses and Reflectors
Flashlights, searchlights, and headlamps often use lenses or reflectors.
These optical parts control where light travels.
Depending on material, coating, geometry, and surface finish, the final beam may show different visual characteristics.
A slight color variation that is difficult to notice in a bare LED can become more visible in a concentrated beam or hotspot.
Housing and Internal Surfaces
Internal surfaces can also influence reflected light.
For example:
White internal plastic
Metallic reflectors
Colored decorative parts
Black light shields
can affect how light is mixed or visually perceived.
LED Arrangement
The physical distance between LEDs can affect color mixing.
If several LEDs are positioned very close behind a diffuser, their light may blend more effectively.
If LEDs are widely separated or highly visible, small differences between individual LEDs may be easier to notice.
DP’s article on how light distribution and diffuser design affect usable illumination explains how optical structure changes the way light reaches the user.
Light-distribution design focuses on how illumination is spread and used, while color-consistency control focuses on whether the white-light appearance remains visually consistent.
Operating Current
The complete driver configuration also matters.
Importers should evaluate the LED at the actual operating current used by the final product, particularly when comparing:
Prototype samples
Pre-production samples
Mass-production samples
Different brightness modes
Changing the driver or LED current after sample approval can change more than brightness.
It may also change the way the final lighting system appears.
This is one reason component changes should be controlled rather than treated as invisible substitutions.
Multi-LED Products Make Color Matching More Important
Color consistency becomes more visible when a product uses multiple LEDs.
A single-LED flashlight can have a slightly different tint from another production batch without creating an obvious color pattern inside one product.
A lamp containing twenty or forty LEDs is different.
If individual LED groups do not match well, the customer may notice:
One area appearing cooler
One area appearing more neutral
Different colors around the diffuser
Uneven white-light zones
Different-looking light from separate LED boards
Emergency Lights
Many rechargeable emergency lights use multiple LEDs to illuminate a broad area.
The buyer may therefore want to check:
LED appearance across the complete panel
Consistency between left and right areas
Different LED boards
Multiple samples from the same production batch
Camping Lanterns
Camping lanterns often depend on optical mixing.
LEDs may be positioned around:
A central column
A circular board
A top or bottom plate
Multiple lighting surfaces
If the LEDs do not match closely enough, the diffuser may show visible color zones.
However, good optical mixing can sometimes reduce the visibility of small individual differences.

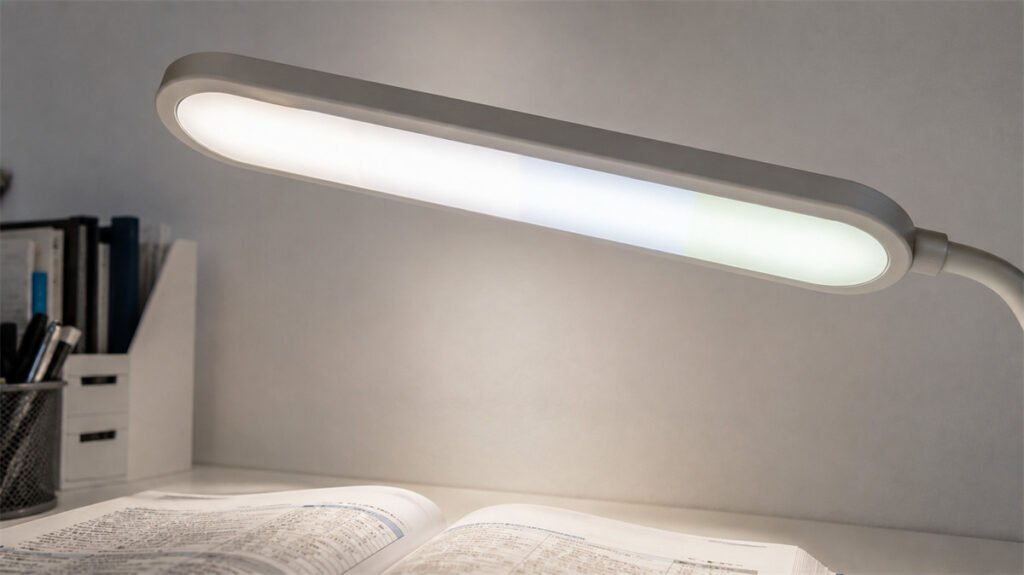

Desk Lamps
Desk lamps can make matching particularly noticeable because users are close to the light source.
Long LED arrays may reveal differences if one section of the lamp appears warmer or cooler than another.
A premium desk-lamp project may therefore justify tighter matching than a simple utility flashlight.
Rechargeable Bulbs
Rechargeable bulbs often use multiple LEDs around a PCB.
If the optical cover blends the sources effectively, the final light can appear uniform.
The buyer should still judge the complete bulb rather than individual LEDs alone.
Multi-CCT Products
Products with warm, neutral, and cool-white channels introduce an additional challenge.
Each channel should have:
A defined CCT target
Appropriate LED matching
Consistent mode behavior
Acceptable brightness
Repeatable appearance
The relationship between channels also matters.
If the warm mode is approved at one appearance and the cool mode at another, both references should be preserved for repeat production.
Multi-LED Product Insight: Consistency Must Be Evaluated as a Complete Light Source
- Check whether individual LEDs create visible color zones inside one product.
- Compare several samples under the same operating mode.
- Evaluate the finished diffuser, lens, or reflector rather than bare LEDs only.
- For multi-CCT products, approve each color-temperature channel separately.

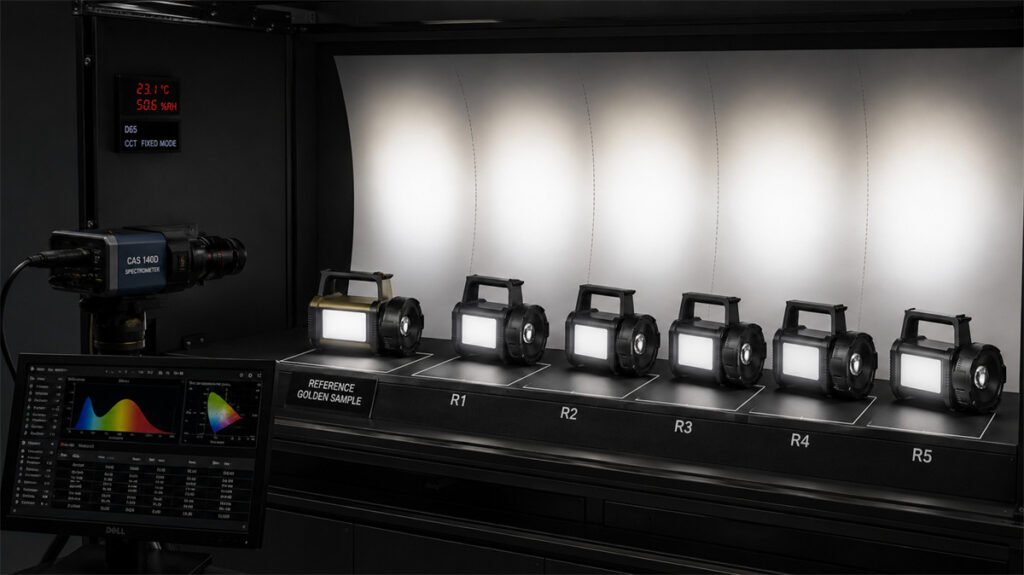

Why Repeat Orders Need Color Specifications, Not Just Product Photos
Repeat orders are where color-consistency control becomes especially important.
A buyer may place an initial OEM order after approving a physical sample.
Several months later, the buyer sends:
“Please produce the same model as last order.”
From a commercial perspective, that sounds clear.
From a production-specification perspective, it may not be enough.
Product Photos Cannot Fully Record White-Light Appearance
A photograph of a switched-on lamp can be affected by:
Camera white balance
Exposure
Phone processing
Screen settings
Ambient lighting
Image compression
Therefore, a photo can be useful as a communication reference but should not be the only technical standard for white-light matching.
Keep the Approved CCT Requirement
The repeat-order file should retain information such as:
Nominal CCT
Acceptable CCT range
LED specification where required
LED supplier or approved alternative rules where required
Brightness mode used for evaluation
Diffuser material
Lens or reflector configuration
Approved physical sample
This makes “same as last order” much more specific.
A repeat-order instruction such as “same model, same 6500K” should therefore not replace the original LED, binning, optical, and approved-sample references when visual consistency matters.
The Golden Sample Becomes Valuable
An approved physical reference can help the buyer and factory compare future production.
DP’s article on golden sample quality control explains why approved reference samples are useful for preventing specification drift between sample approval and mass production.
For LED color consistency, the golden sample can help provide a visual reference for:
White-light appearance
CCT mode
Diffuser
Brightness
LED arrangement
Complete optical effect
The physical reference should still be supported by written specifications.
Visual comparison alone should not replace measurable requirements where the project requires them.
Component Substitution Requires Review
A repeat order may involve supply-chain changes.
For example:
Original LED unavailable
Different LED supplier proposed
New LED bin proposed
PCB changed
Diffuser material changed
Driver changed
Current setting changed
These changes may be commercially reasonable.
But if they can affect the approved lighting appearance, they should be reviewed before mass production.
The objective is not to prevent every component change forever.
The objective is to prevent an apparently minor change from unintentionally altering the customer-facing result.
DP’s broader article on rechargeable product performance specifications explains why buyers should evaluate real product performance rather than relying only on headline specifications.
Packaging Claims Must Remain Consistent
If packaging states:
3000K
4000K
6500K
Warm White
Neutral White
Cool White
the final production configuration should match the approved positioning.
If the LED source or mode configuration changes, packaging claims may also need to be reviewed.
What Importers Should Lock Before OEM Sample Approval
LED color consistency should be confirmed during sample development, especially where visual matching is commercially important.
Importers should define:
Nominal CCT
Acceptable CCT range
Required color-consistency level
LED specification
LED supplier requirement, if necessary
Approved alternative LED rules, if applicable
Single-CCT or multi-CCT design
CCT of each lighting mode
Brightness mode used for color evaluation
LED quantity
LED arrangement
Multi-LED matching requirement
Diffuser material
Lens configuration
Reflector configuration
Driver configuration
Operating current
Visual consistency between samples
Approved physical sample
Golden-sample reference
Repeat-order reference
Packaging CCT claims
Change-control requirements
Compare More Than One Sample
One carefully prepared sample cannot always demonstrate production consistency.
Where color matching matters, buyers can compare multiple samples under the same conditions.
They should use:
The same operating mode
Similar battery condition
The same viewing environment
The same diffuser or optical parts
The same comparison method
The objective is to identify whether normal production variation remains within the agreed requirement.
Define the Color-Consistency Test Conditions
When color consistency is measured numerically, the buyer and factory should use defined and repeatable test conditions.
The test record may include:
Target CCT
Acceptable CCT or chromaticity range
Operating mode
Brightness level
Battery state of charge
Warm-up time before measurement
Measurement instrument
Measurement position and distance
Final diffuser, lens, or reflector installed
Ambient-light condition
Number of samples
Number of measurement points where applicable
Required consistency within one product
Required consistency between products
Reference golden sample
Multi-CCT products should be evaluated separately in each color-temperature mode.
Multi-LED products may also require checks at more than one position if different parts of the illuminated surface can show visible color variation.
The same test method should be used for sample approval, mass-production inspection, and repeat-order comparison where color consistency is commercially important.
Approve the Final Optical Configuration
The sample used for approval should represent the final:
LED
PCB
Driver
Operating current
Diffuser
Lens
Reflector
Housing
Lighting mode
Changing one of these after approval may alter the finished appearance.
DP’s sample-to-mass-production process explains how approved sample specifications can be transferred into bulk-production requirements.
Connect Color Consistency to CCT Selection
CCT selection should be completed first.
DP’s article on LED color temperature selection explains how importers choose between approximately 3000K, 4000K, and 6500K according to application.
After that decision, the project can define how tightly that selected appearance needs to be controlled.
In simple terms:
CCT selection defines the intended color-temperature direction.
Color-consistency control defines how closely production should stay to that approved appearance.
Connect Color Consistency to Lighting Modes
Multi-CCT and multi-mode products should also maintain clear relationships between different operating states.
DP’s article on rechargeable LED lighting modes explains how importers can define brightness levels, CCT switching, dimming, special modes, and memory behavior.
For customized projects, DP’s OEM and ODM rechargeable lighting development can support LED selection, CCT configuration, optical structure, battery and charging design, PCB control, sample approval, and production coordination.
Conclusion
LED color consistency is not simply a matter of choosing 3000K, 4000K, or 6500K.
After the target CCT is selected, importers also need to consider manufacturing tolerance, LED binning, multi-LED matching, optics, driver conditions, and production-batch control.
For many rechargeable lighting products, small variations can be managed through clear specifications, approved samples, controlled component sourcing, and repeat-order references.
The objective is not to demand that every LED be visually identical under every condition.
The objective is to define the level of consistency that the product and market actually require, then maintain that target from OEM sample approval through mass production and future repeat orders.
Planning a rechargeable flashlight, searchlight, headlamp, camping lantern, emergency light, rechargeable bulb, or desk-lamp project? Send DP your target CCT, color-consistency requirement, LED configuration, optical design, brightness modes, battery system, order quantity, and repeat-order expectations. Our team can evaluate the complete lighting configuration during OEM sample development.
Partner with DP Light Today
Looking for competitive lighting & electrical products? Get direct access to our latest catalog and exclusive factory pricing.
*Fast response within 24 hours.
FAQ: LED Color Consistency
A: Yes. A nominal 6500K specification does not mean every LED will occupy exactly the same color point. Manufacturing tolerance, binning, tint, optics, and operating conditions can create small visual differences.
A: LED binning is the process of sorting manufactured LEDs into defined groups according to selected optical or electrical characteristics, such as color, CCT, luminous flux, or forward voltage.
A: Not automatically. Supplier consistency helps, but the exact LED specification, binning range, production batch, driver conditions, optical parts, and approved tolerances also matter.
A: Multiple LEDs are visible together through the same optical system. If their color characteristics differ enough, users may notice different white-light areas or uneven color across the lamp.
A: Yes. A golden or approved physical sample can provide a useful visual reference, but it should be supported by written CCT, LED, optical, and change-control specifications where required.
Why Choose Us?
Export Market Distribution
